Connector End View - X930F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1048099-03-A

Connector YAZAKI 7287-1918-90

Color BU

Connector Location:

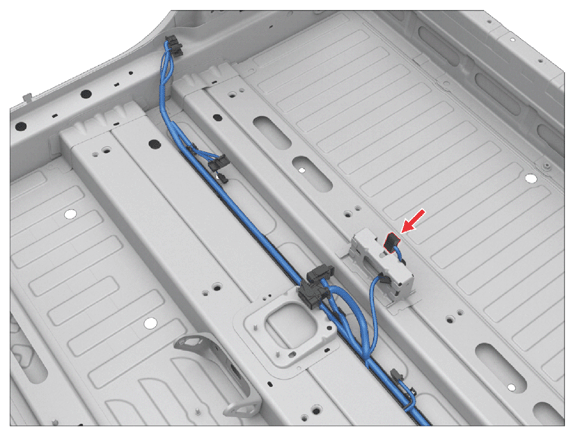

Fig 1: Connector Component Location - X930F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X930F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	2.00	X031	3
2	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X030A	9
3	unused
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X030A	24
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X031	22
7	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	G031	4
8	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X030A	10
9	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X936F	7
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X936F	20
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X493	3
13	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X493	4
14	SUMITOMO	8240-0214	1.5x0.64F	BK	2.00	G031	12
15	SUMITOMO	8240-0214	1.5x0.64F	YE	2.00	X031	5
16	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X497	2
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X497	1
18	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X030A	1
19	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X030A	2
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8240-0214	1.5x0.64F	BN	2.00	X031	18
