Connector End View - X926M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1042620-00-A

Connector SUMITOMO 6098-5613

Color WH

Connector Location:

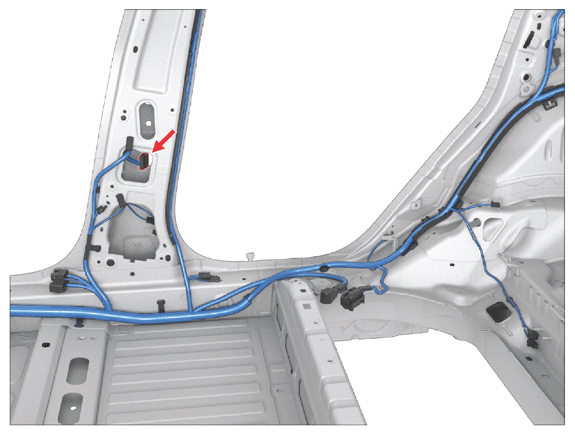

Fig 1: Connector Component Location - X926M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

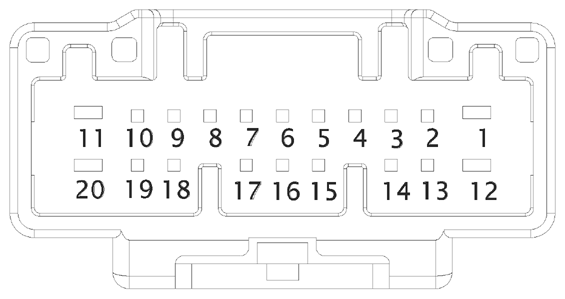

Fig 2: Connector End View - X926M (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	RD	1.50	X051	2
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X050A	21
3	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35	X050A	6
4	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50	X050A	26
5	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35	X050A	18
6	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X050A	7
7	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35	X051	25
8	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50	X050A	20
9	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50	X050B	5
10	SUMITOMO	8100-3623	0.64x0.64M	GY	0.50	X050B	1
11	unused
12	SUMITOMO	8230-4923	1.5x0.6M	BU	1.50	X051	1
13	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35	X051	21
14	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35	X051	27
15	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35	X051	11
16	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35	X051	6
17	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35	X051	22
18	SUMITOMO	8100-3623	0.64x0.64M	BU	0.50	X171A	7
19	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50	X560	4
20	unused
