Connector End View - X924F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042621-00-A
Connector SUMITOMO 6098-5622
Color WH
Connector Location:

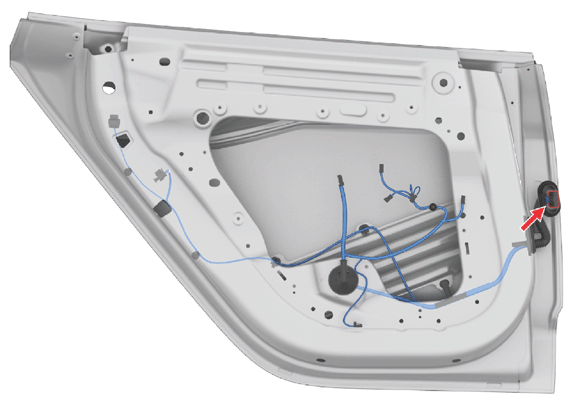

Fig 1: Connector Component Location - X924F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X924F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | WH | 1.50 | X433 | 1 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X432 | 1 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X432 | 2 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.50 | ||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X433 | 2 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X433 | 4 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X436 | 1 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X427 | 1 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X427 | 4 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X427 | 3 | ||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.50 | X586 | 1 | ||
| 12 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 1.50 | X433 | 5 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X426 | 3 | ||
| 14 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.35 | X426 | 2 | ||
| 15 | SUMITOMO | 8100-3625 | 0.64x0.64F | BK | 0.35 | X425 | 2 | ||
| 16 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X435 | 1 | ||
| 17 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X425 | 4 | ||
| 18 | unused | ||||||||
| 19 | unused | ||||||||
| 20 | SUMITOMO | 8240-0215 | 1.5x0.64F | BK | 0.50 | X586 | 2 | ||
