Connector End View - X909F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1097116-00-A

Connector DELPHI 33245684

Color WH

Connector Location:

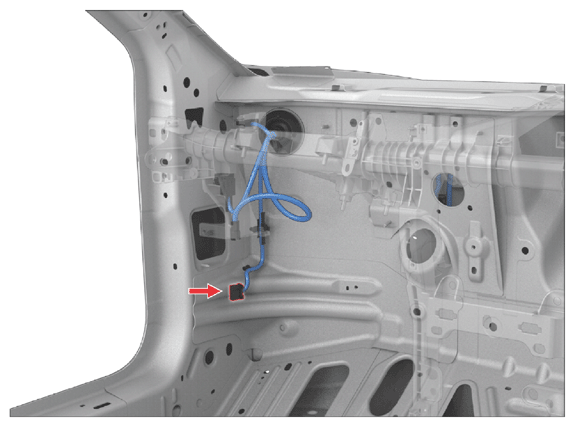

Fig 1: Connector Component Location - X909F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

G16613324

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X909F (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

G16613325

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	unused
7	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X905F	5
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X905F	6
9	unused
10	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X250	1
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X250	2
12	unused
13	unused
14	unused
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X906F	9
16	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35			X010	15
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X010	30
18	unused
19	unused
20	unused
21	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X251	1
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X251	2
