Connector End View - X870A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1048705-05-A
Connector ROSENBERGER 59Z115-000-F
Color BN
Connector Location:

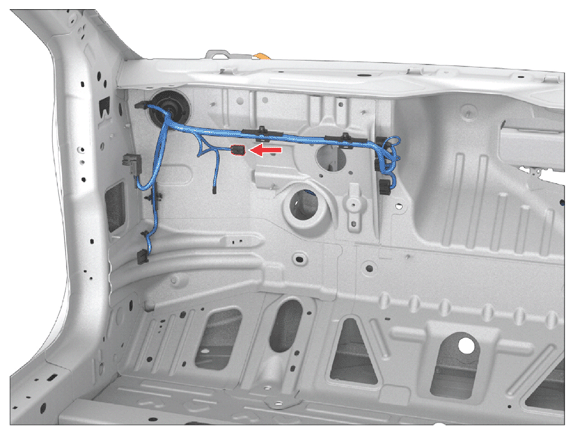

Fig 1: Connector Component Location - X870A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

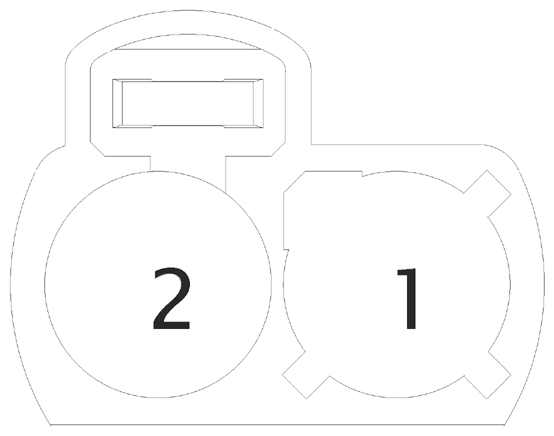

Fig 2: Connector End View - X870A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | 59K16B-1M4T4 | COAXF | BK | D302 | X823 | 1 | ||
| 2 | ROSENBERGER | 59K16B-1M4T4 | COAXF | BK | D302 | X824 | 1 |
