Connector End View - X861 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1086455-03-A
Connector ROSENBERGER 99K10D-1D5A5-D
Color BO
Connector Location:

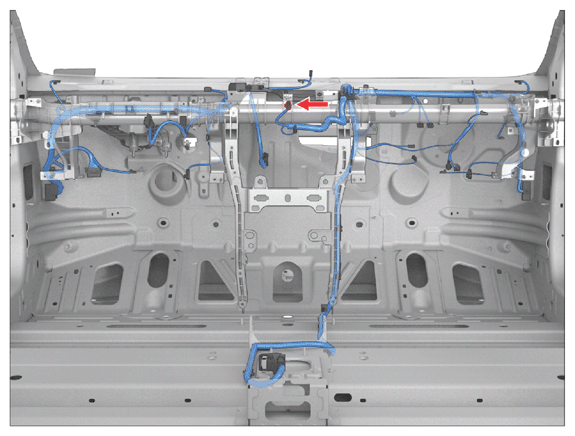

Fig 1: Connector Component Location - X861 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

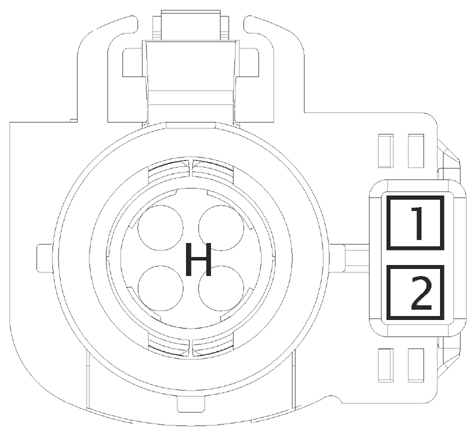

Fig 2: Connector End View - X861 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-963715-1 | 0.63x0.63F | RD | 0.50 | X860 | 1 | ||
| 2 | AMP | 5-963715-1 | 0.63x0.63F | BK | 0.50 | X860 | 2 | ||
| H | TESLA | PIA-HSD-TERM | BK | Q1020 | X860 | H |
