Connector End View - X802 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1055888-03-A
Connector ROSENBERGER 59Z027-001-D
Color BO
Connector Location:

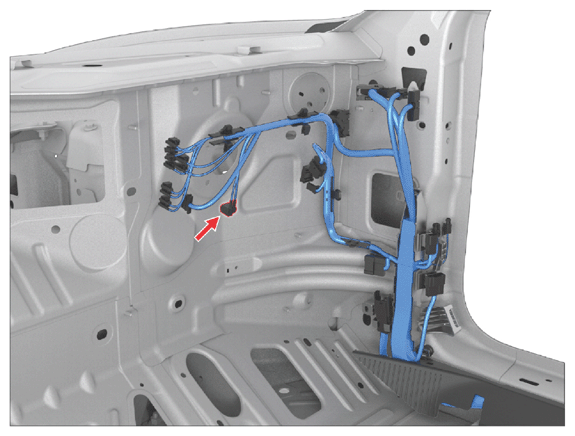

Fig 1: Connector Component Location - X802 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X802 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ROSENBERGER | 59K28H-1M4/90A4 | COAX | BK | D302 | X827 | 1 | ||
| 2 | ROSENBERGER | 59K28H-1M4/90A4 | COAX | BK | D302 | X829 | 1 |
