Connector End View - X617 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1075246-00-A
Connector YAZAKI 7283-6449-40
Color GY
Connector Location:

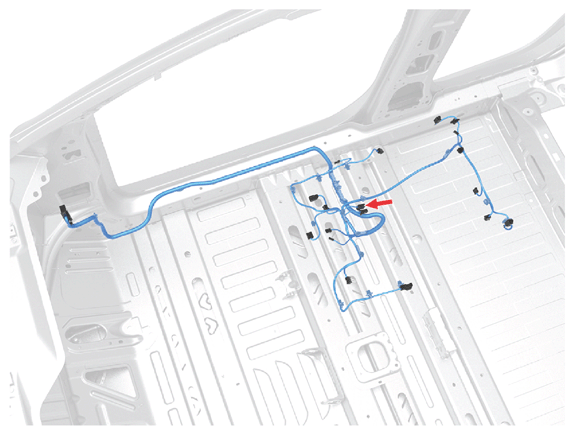

Fig 1: Connector Component Location - X617 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X617 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-6315-02 | GN | 0.50 | X032 | 48 | |||
| 2 | YAZAKI | 7116-6315-02 | YE | 0.50 | X032 | 32 | |||
| 3 | YAZAKI | 7116-6315-02 | GY | 0.35 | X032 | 22 | |||
| 4 | YAZAKI | 7116-6315-02 | BK | 0.35 |
