Connector End View - X558_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1079658-00-A
Connector KUM PH845-07010
Color WT
Connector Location:

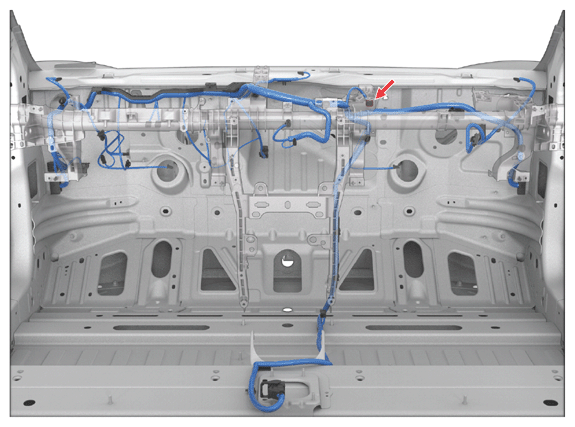

Fig 1: Connector Component Location - X558_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X558_1 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | unused | ||||||||
| 3 | KUM | MT095-29080 | 0.5x0.5F | BN | 0.35 | X055_1 | 28 | ||
| 4 | KUM | MT095-29080 | 0.5x0.5F | WH | 0.35 | X055_1 | 2 | ||
| 5 | KUM | MT095-29080 | 0.5x0.5F | BU | 0.35 | X055_1 | 3 | ||
| 6 | KUM | MT095-29080 | 0.5x0.5F | VT | 0.35 | X055_1 | 20 | ||
| 7 | KUM | MT095-29080 | 0.5x0.5F | YE | 0.35 | X055_1 | 29 | ||
