Connector End View - X553 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1106842-00-A
Connector MOLEX 98193-0001
Color BK
Connector Location:

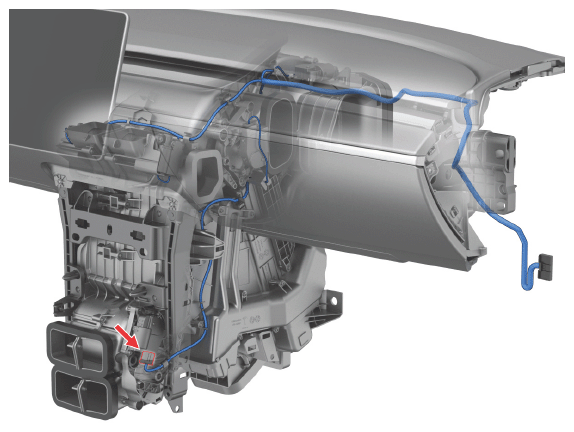

Fig 1: Connector Component Location - X553 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X553 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 0986581211 | 0.64x0.64F | BU | 0.35 | ||||
| 2 | MOLEX | 0986581211 | 0.64x0.64F | RD/GY | 0.35 | X058 | 2 | ||
| 3 | MOLEX | 0986581211 | 0.64x0.64F | RD | 0.35 | ||||
| 4 | unused | ||||||||
| 5 | MOLEX | 0986581211 | 0.64x0.64F | GN | 0.35 | X058 | 23 | ||
| 6 | MOLEX | 0986581211 | 0.64x0.64F | GY | 0.35 | X058 | 24 | ||
