Connector End View - X532 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1517945-01-A

Connector  DELPHI 35425636

Color  Currently not available

Connector Location:

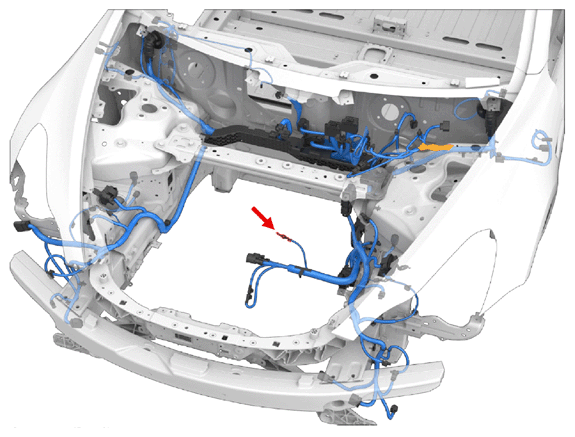

Fig 1: Connector Component Location - X532 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16613051Courtesy of TESLA, INC.

Connector Pinout:  Currently not available
