Connector End View - X527 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1073280-00-A
Connector YAZAKI 7123-1424
Color NA
Connector Location:

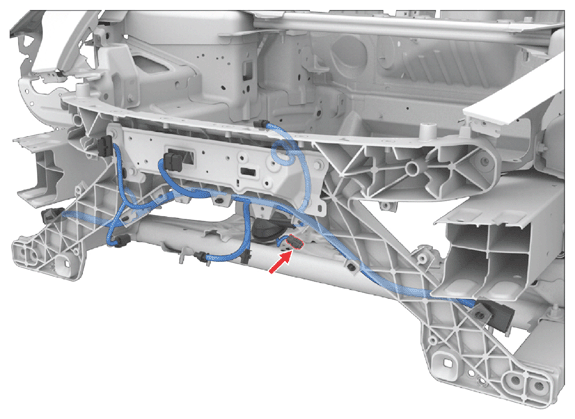

Fig 1: Connector Component Location - X527 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

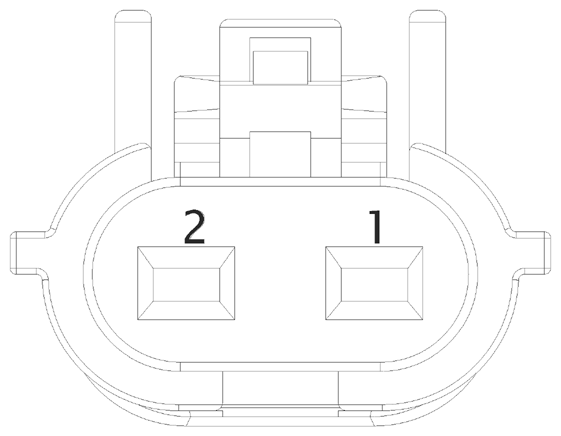

Fig 2: Connector End View - X527 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-1471 | 1.8x0.64FS | BN | 0.50 | YAZAKI | 7157-7897-60 | X905M | 9 |
| 2 | YAZAKI | 7116-1471 | 1.8x0.64FS | BK | 0.50 | YAZAKI | 7157-7897-60 | X905M | 10 |
