Connector End View - X479 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1080448-00-A

Connector JST RADPB-44-1AK

Color BK

Connector Location:

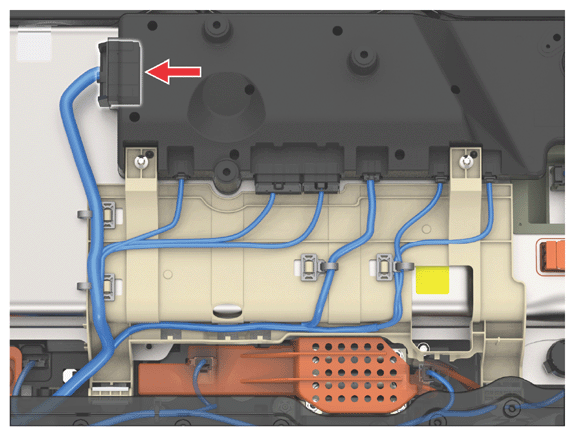

Fig 1: Connector Component Location - X479 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X479 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	4
2	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	6
3	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X477	9
4	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X477	5
5	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	3
6	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	2
7	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X421	3
8	JST	SAIT-A03T-M064	0.64x0.64F	WH/RD	0.35	X467	1
9	JST	SAIT-A03T-M064	0.64x0.64F	WH/RD	0.35	X468	1
10	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X424	2
11	unused
12	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	11
13	unused
14	unused
15	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	5
16	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X424	3
17	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X477	6
18	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X477	2
19	unused
20	unused
21	unused
22	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X467	2
23	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X468	2
24	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X422	2
25	unused
26	JST	SAIT-A03T-M064	0.64x0.64F	WH	0.35	X420	10
27	unused
28	unused
29	DELPHI	12191811		WH	0.35	X420	1
30	DELPHI	12191811		WH	0.35	X420	12
31	unused
32	unused
33	DELPHI	12191812		WH	0.75	X474	1
34	DELPHI	12191812		WH	0.75	X476	1
35	DELPHI	12191812		WH	0.75	X477	3
36	DELPHI	12191812		WH	0.75	X477	4
37	DELPHI	12191812		WH	0.75	X477	8
38	unused
39	unused
40	unused
41	DELPHI	12191812		WH	0.75	X474	2
42	DELPHI	12191812		WH	0.75	X476	2
43	DELPHI	12191812		WH	0.75	X477	7
44	unused
