Connector End View - X468 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1121082-00-A
Connector ALLEGRO A1152LUBTN-T
Color Currently not available
Connector Location:

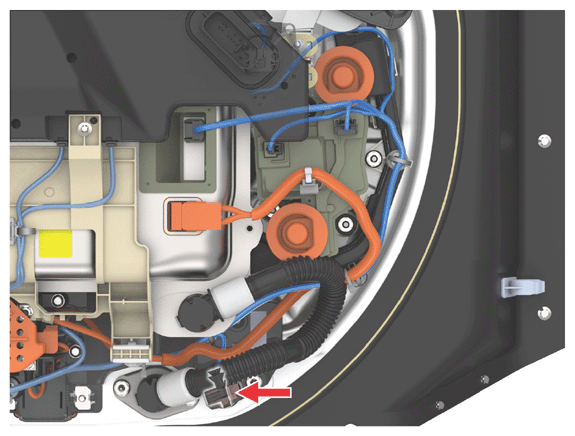

Fig 1: Connector Component Location - X468 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X468 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-SN-26-22 | N/A | WH/RD | 0.35 | X479 | 9 | ||
| 2 | GEN | PIA-SN-26-22 | N/A | WH | 0.35 | X479 | 23 |
