Connector End View - X404 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042476-00-A
Connector SUMITOMO 6098-3802
Color WH
Connector Location:

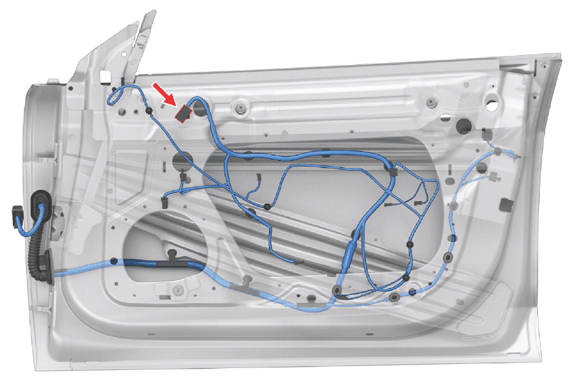

Fig 1: Connector Component Location - X404 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

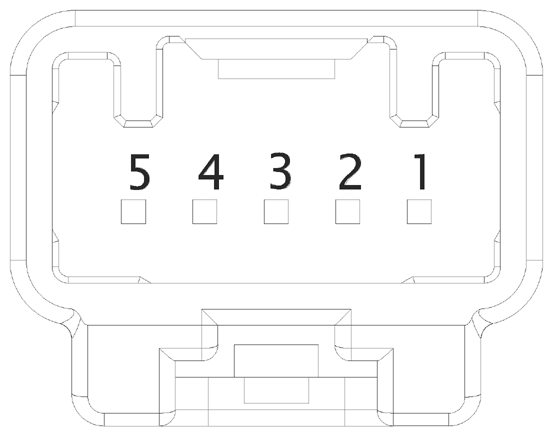

Fig 2: Connector End View - X404 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8230-4878 | 0.64x0.64M | VT | 0.13 | X053A | 15 | ||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8230-4878 | 0.64x0.64M | WH | 0.13 | X053A | 16 | ||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8230-4878 | 0.64x0.64M | BU | 0.13 | X053A | 14 | ||
