Connector End View - X399 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1015005-00-B
Connector DELPHI 13623681
Color BK
Connector Location:

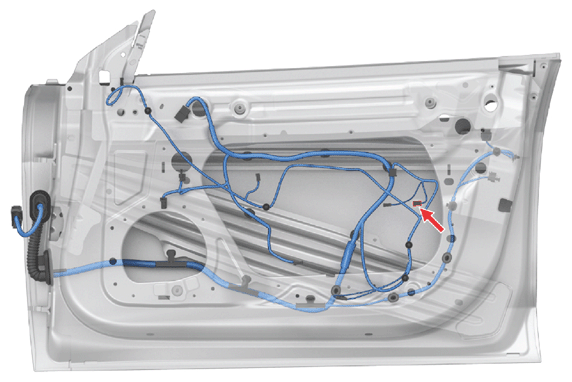

Fig 1: Connector Component Location - X399 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X399 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 13787415 | 0.64x0.64F | GY | 0.13 | X053A | 18 | ||
| 2 | DELPHI | 13787415 | 0.64x0.64F | YE | 0.13 | X053A | 27 | ||
| 3 | DELPHI | 13580633 | 0.64x0.64F | BK | 0.35 |
