Connector End View - X347 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1138975-00-A
Connector DELPHI 13623700
Color BK
Connector Location:

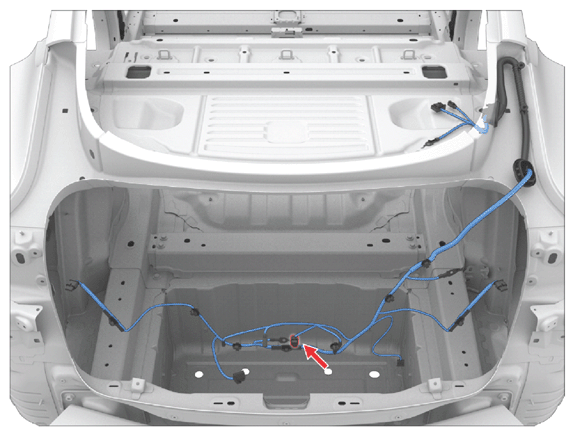

Fig 1: Connector Component Location - X347 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

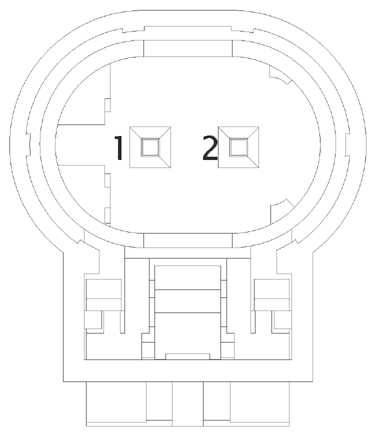

Fig 2: Connector End View - X347 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 5-962885-1 | 0.63x0.63FS | BU/BK | 0.35 | AMP | 967067-2 | X954F | 14 |
| 2 | AMP | 5-965906-1 | 0.63x0.63FS | BK | 0.50 | AMP | 967067-1 | G045 | 1 |
