Connector End View - X302 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1056909-00-A
Connector DELPHI 12162195
Color BK
Connector Location:

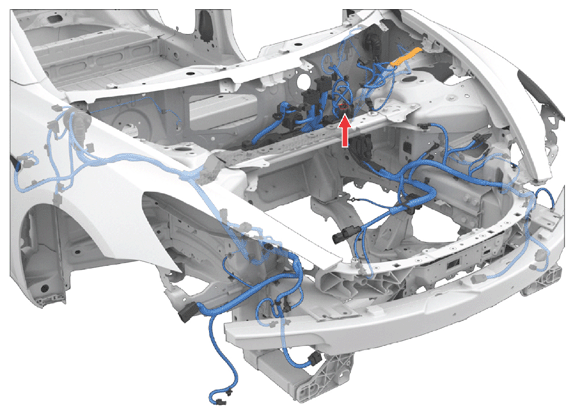

Fig 1: Connector Component Location - X302 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

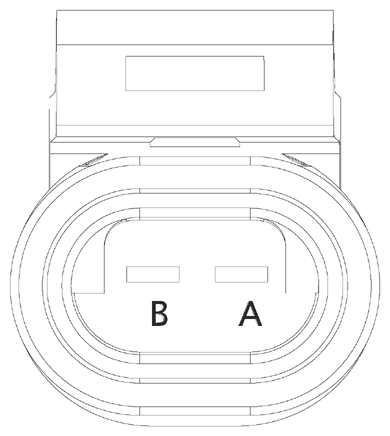

Fig 2: Connector End View - X302 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| A | DELPHI | 12124076 | 1.5X0.6FS | BK | 0.50 | TESLA | MAT-125-185 | G011 | 10 |
| B | DELPHI | 12124076 | 1.5X0.6FS | WH | 0.50 | TESLA | MAT-125-185 | X010 | 53 |
