Connector End View - X301 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1096619-00-A
Connector FEP 42121100
Color BK
Connector Location:

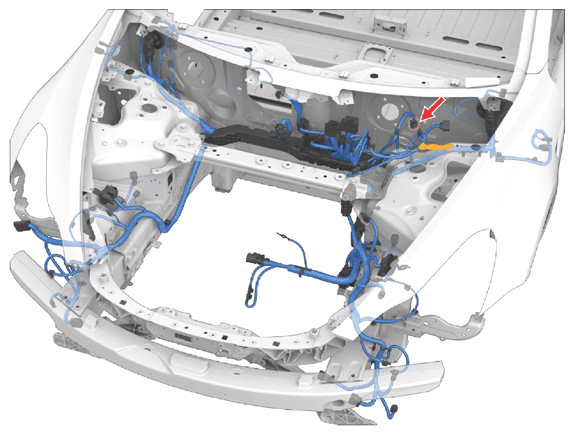

Fig 1: Connector Component Location - X301 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

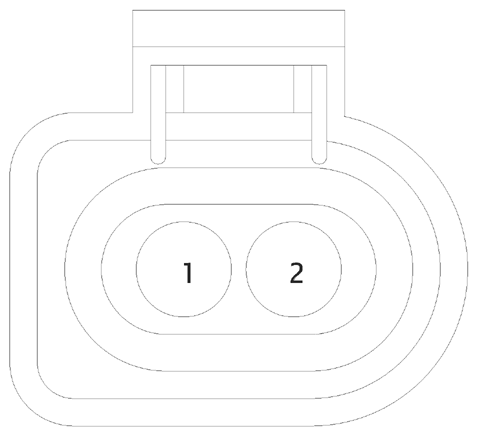

Fig 2: Connector End View - X301 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 964286-1 | 2.8x0.8FS | BK | 0.75 | AMP | 963294-1 | G011 | 11 |
| 2 | AMP | 964286-1 | 2.8x0.8FS | BU | 0.75 | AMP | 963294-1 | X010 | 80 |
