Connector End View - X272 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1488721-00-A
Connector DELPHI 35126383
Color BK
Connector Location:

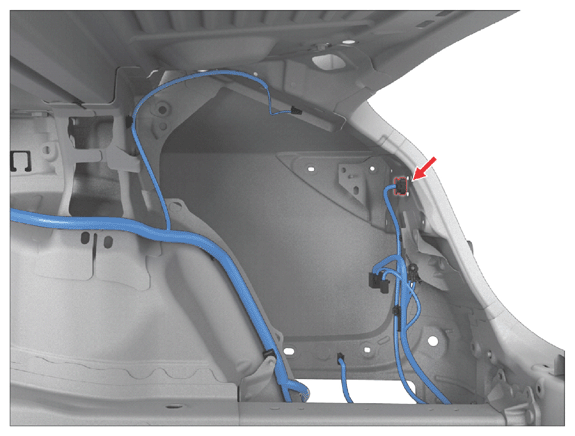

Fig 1: Connector Component Location - X272 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

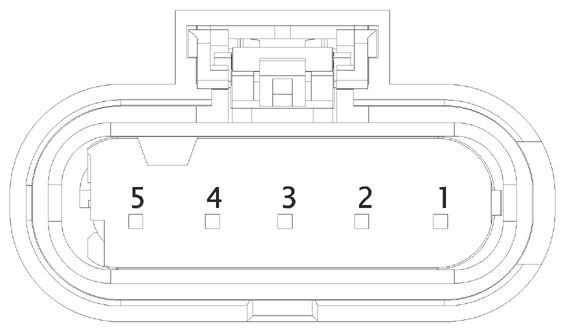

Fig 2: Connector End View - X272 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-1 | 1.2x0.6FS | BK | 0.35 | AMP | 967067-2 | G032 | 12 |
| 2 | AMP | 7-1452665-1 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X050A | 11 |
| 3 | AMP | 7-1452665-1 | 1.2x0.6FS | TN | 0.35 | AMP | 967067-2 | X050B | 8 |
| 4 | unused | ||||||||
| 5 | AMP | 7-1452665-1 | 1.2x0.6FS | GY | 0.35 | AMP | 967067-2 | X050A | 12 |
