Connector End View - X237 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1552449-00-B
Connector JAE MX72B002SR1-1
Color BK
Connector Location:

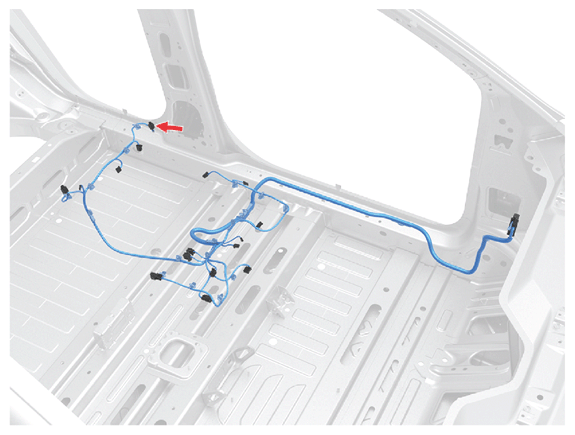

Fig 1: Connector Component Location - X237 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

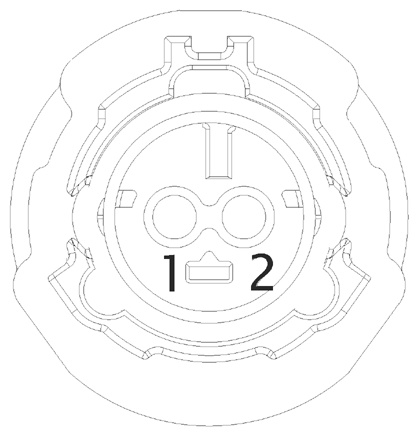

Fig 2: Connector End View - X237 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | PIA | TERM-AU | PIA-F | YE/BU | 0.35 | X032 | 25 | ||
| 2 | PIA | TERM-AU | PIA-F | GN/GY | 0.35 | X032 | 24 |
