Connector End View - X204 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1496687-00-A
Connector DELPHI 35126363
Color GY
Connector Location:

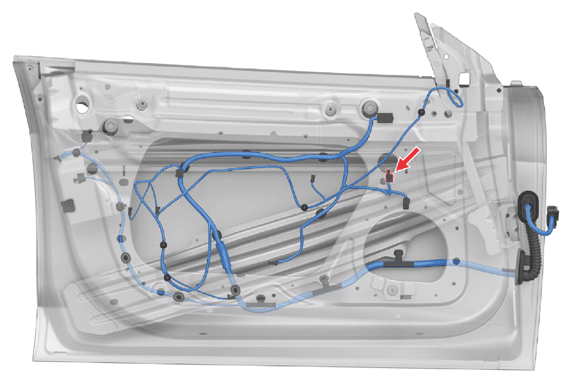

Fig 1: Connector Component Location - X204 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

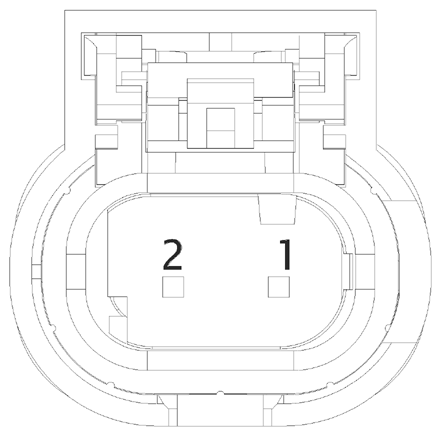

Fig 2: Connector End View - X204 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 7-1452665-3 | 1.2x0.6FS | YE | 0.35 | AMP | 967067-2 | X033A | 16 |
| 2 | AMP | 7-1452665-3 | 1.2x0.6FS | RD | 0.35 | AMP | 967067-2 | X033A | 15 |
