Connector End View - X190 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1064887-01-A
Connector YAZAKI 7287-1992-40
Color GY
Connector Location:

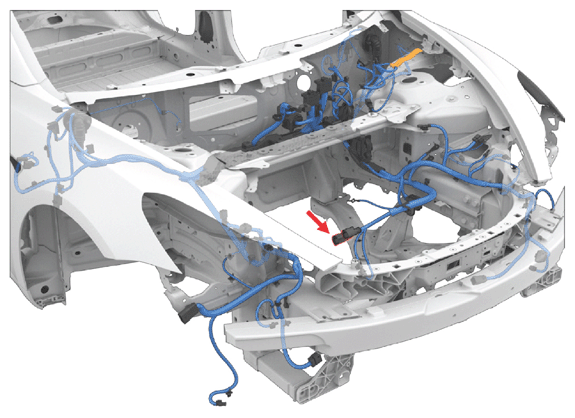

Fig 1: Connector Component Location - X190 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

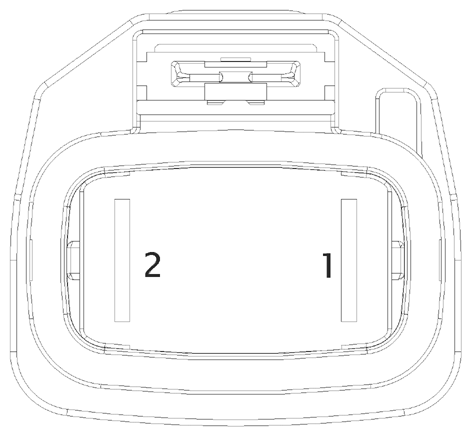

Fig 2: Connector End View - X190 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BU | 13 | YAZAKI | 7158-3713-70 | X014 | 2 |
| 2 | YAZAKI | 7116-5625-06 | 9.5x1.2FS | BK | 13 | YAZAKI | 7158-3713-70 | G098 | 1 |
