Connector End View - X185 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1582608-00-A
Connector AMPHENOL 10142348-004LF
Color BK
Connector Location:

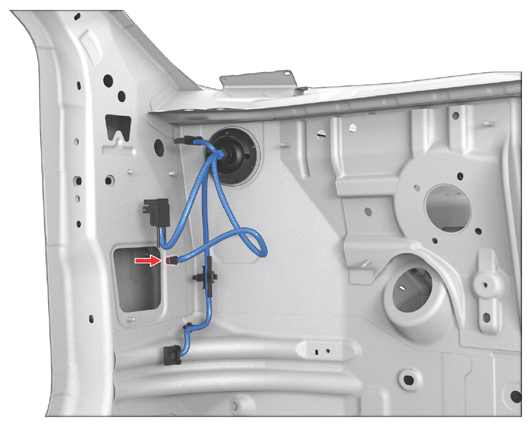

Fig 1: Connector Component Location - X185 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

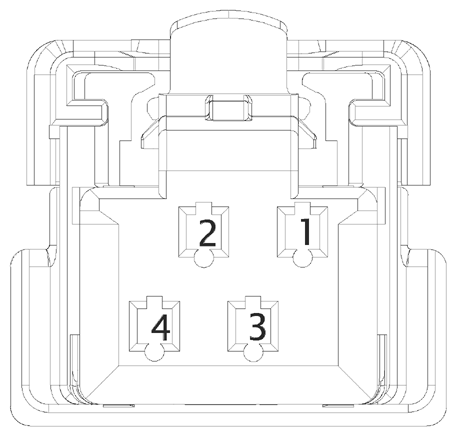

Fig 2: Connector End View - X185 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10141272-111 LF | 0.50F | YE | 0.35 | X173 | 2 | ||
| 2 | AMPHENOL | 10141272-111 LF | 0.50F | VT | 0.35 | X173 | 1 | ||
| 3 | AMPHENOL | 10141272-111 LF | 0.50F | BU | 0.35 | X173 | 6 | ||
| 4 | AMPHENOL | 10141272-111 LF | 0.50F | WH | 0.35 | X173 | 5 |
