Connector End View - X170A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1645962-00-B
Connector KSE K20F00711
Color BK
Connector Location:

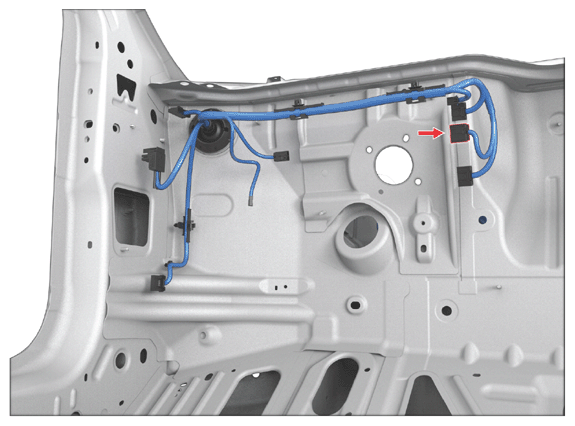

Fig 1: Connector Component Location - X170A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

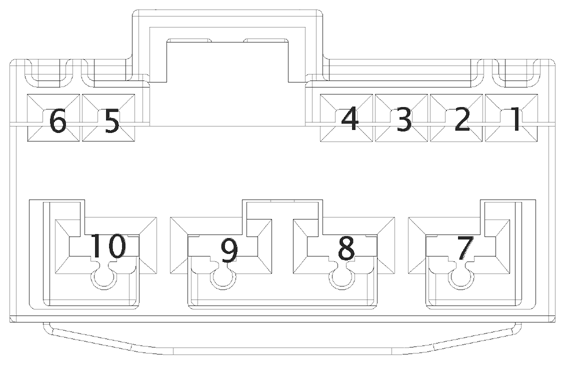

Fig 2: Connector End View - X170A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | DELPHI | 35088739 | 0.64x0.64F | BN/WH | 0.35 | X057 | 11 | ||
| 2 | DELPHI | 35088739 | 0.64x0.64F | BN | 0.35 | X057 | 10 | ||
| 3 | DELPHI | 35088739 | 0.64x0.64F | DKGN/WH | 0.35 | X037 | 13 | ||
| 4 | DELPHI | 35088739 | 0.64x0.64F | GN | 0.35 | X037 | 12 | ||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | YAZAKI | 7116-4272-02 | 2.8x0.8F | WH | 2.00 | X010 | 76 | ||
| 8 | YAZAKI | 7116-4113-02 | 2.8x0.8F | BK | 4.00 | G012 | 15 | ||
| 9 | YAZAKI | 7116-4272-02 | 2.8x0.8F | TN | 2.00 | X010 | 93 | ||
| 10 | YAZAKI | 7116-4272-02 | 2.8x0.8F | RD | 2.00 | X010 | 92 | ||
