Connector End View - X155 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1525769-00-A
Connector DELPHI 33164011
Color BK
Connector Location:

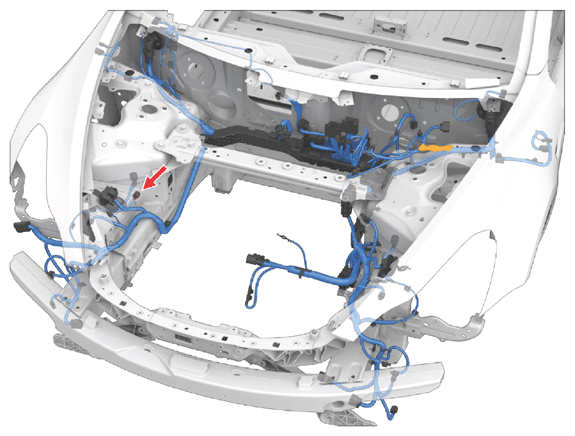

Fig 1: Connector Component Location - X155 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

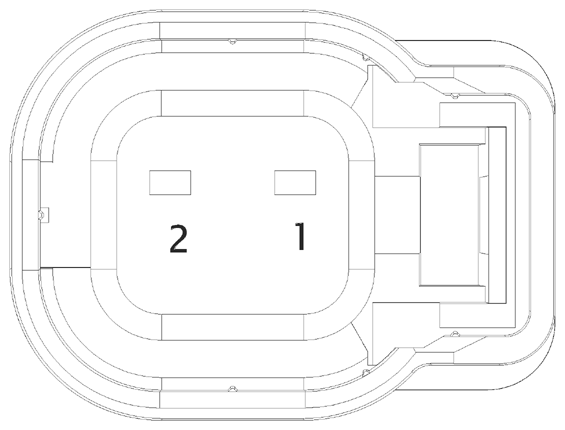

Fig 2: Connector End View - X155 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | BU | 0.35 | YAZAKI | 7158-3030-50 | X151 | 16 |
| 2 | YAZAKI | 7116-4102-02 | 1.5x0.8FS | GY | 0.35 | YAZAKI | 7158-3030-50 | X151 | 4 |
