Connector End View - X151 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1038302-00-A
Connector BOSCH 1928405654
Color BK
Connector Location:

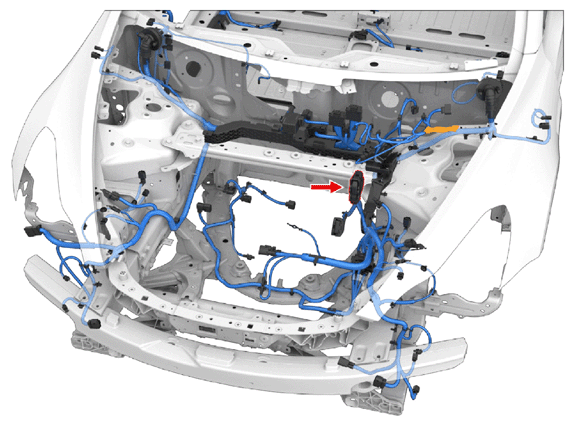

Fig 1: Connector Component Location - X151 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout: Currently not available
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BOSCH | 1928498807 | 4.8x0.8FS | YE | 4 | BOSCH | 1928301086 | X011 | 7 |
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | BOSCH | 1928498705 | 1.5x0.6FS | GY | 0.35 | BOSCH | 1928301118 | X155 | 2 |
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | BOSCH | 1928498705 | 1.5x0.6FS | WH | 0.35 | BOSCH | 1928301118 | X154 | 2 |
| 9 | unused | ||||||||
| 10 | unused | ||||||||
| 11 | unused | ||||||||
| 12 | unused | ||||||||
| 13 | BOSCH | 1928498807 | 4.8x0.8FS | BK | 4 | BOSCH | 1928301086 | G011 | 15 |
| 14 | BOSCH | 1928498705 | 1.5x0.6FS | YE | 0.35 | BOSCH | 1928301118 | X010 | 29 |
| 15 | unused | ||||||||
| 16 | BOSCH | 1928498705 | 1.5x0.6FS | BU | 0.35 | BOSCH | 1928301118 | X155 | 1 |
| 17 | BOSCH | 1928498705 | 1.5x0.6FS | WH | 0.35 | BOSCH | 1928301118 | X908F | 3 |
| 18 | BOSCH | 1928498705 | 1.5x0.6FS | GN | 0.35 | BOSCH | 1928301118 | X908F | 17 |
| 19 | BOSCH | 1928498705 | 1.5x0.6FS | YE | 0.35 | BOSCH | 1928301118 | X154 | 1 |
| 20 | BOSCH | 1928498705 | 1.5x0.6FS | GN | 0.35 | BOSCH | 1928301118 | ||
| 21 | unused | ||||||||
| 22 | unused | ||||||||
| 23 | unused | ||||||||
| 24 | unused | ||||||||
| 25 | BOSCH | 1928498806 | 2.8x0.8FS | WH | 2.00 | BOSCH | 1928301206 | X010 | 91 |
| 26 | BOSCH | 1928498705 | 1.5x0.6FS | YE/LTBU | 0.35 | BOSCH | 1928301118 | X010 | 14 |
| 27 | unused | ||||||||
| 28 | BOSCH | 1928498705 | 1.5x0.6FS | WH | 0.35 | BOSCH | 1928301118 | X010 | 71 |
| 29 | BOSCH | 1928498705 | 1.5x0.6FS | VT | 0.35 | BOSCH | 1928301118 | X908F | 4 |
| 30 | unused | ||||||||
| 31 | BOSCH | 1928498705 | 1.5x0.6FS | TN | 0.35 | BOSCH | 1928301118 | X908F | 16 |
| 32 | unused | ||||||||
| 33 | BOSCH | 1928498705 | 1.5x0.6FS | DKGN/WH | 0.35 | BOSCH | 1928301118 | ||
| 34 | unused | ||||||||
| 35 | unused | ||||||||
| 36 | unused | ||||||||
| 37 | unused | ||||||||
| 38 | BOSCH | 1928498806 | 2.8x0.8FS | BK | 1.50 | BOSCH | 1928301206 | G011 | 13 |
