Connector End View - X121 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1039297-00-A
Connector SUMITOMO 6098-4008
Color WH
Connector Location:

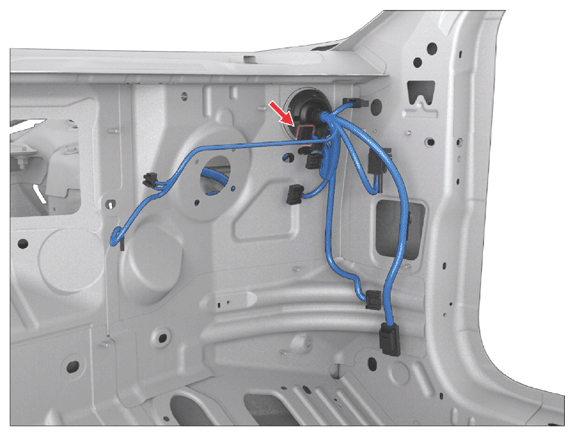

Fig 1: Connector Component Location - X121 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X121 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X057 | 25 | ||
| 2 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X057 | 24 | ||
| 3 | SUMITOMO | 8100-3625 | 0.64x0.64F | VT | 0.35 | X905F | 11 | ||
| 4 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | ||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | ||||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | RD | 0.35 | X906F | 5 | ||
| 7 | SUMITOMO | 8100-3625 | 0.64x0.64F | BU | 0.35 | X906F | 6 | ||
| 8 | SUMITOMO | 8100-3625 | 0.64x0.64F | GY | 0.35 | X905F | 12 | ||
| 9 | SUMITOMO | 8100-3625 | 0.64x0.64F | DKGN/WH | 0.35 | X037 | 14 | ||
| 10 | SUMITOMO | 8100-3625 | 0.64x0.64F | GN | 0.35 | X037 | 15 | ||
| 11 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN/WH | 0.35 | X057 | 23 | ||
| 12 | SUMITOMO | 8100-3625 | 0.64x0.64F | BN | 0.35 | X057 | 22 | ||
| 13 | SUMITOMO | 8100-3625 | 0.64x0.64F | WH | 0.50 | ||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | unused | ||||||||
