Connector End View - X120 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1042614-02-A
Connector SUMITOMO 6098-5611
Color BU
Connector Location:

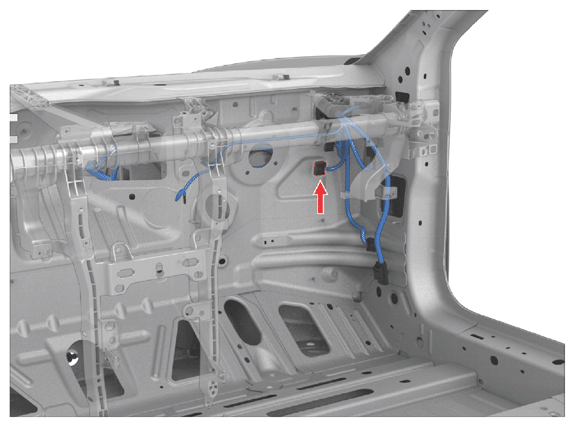

Fig 1: Connector Component Location - X120 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:
Fig 2: Connector End View - X120 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0215 | 1.5x0.64F | RD | 0.35 | X603 | 1 | ||
| 2 | unused | ||||||||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
| 5 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE/LTBU | 0.35 | X010 | 12 | ||
| 6 | SUMITOMO | 8100-3625 | 0.64x0.64F | YE | 0.35 | X010 | 27 | ||
| 7 | unused | ||||||||
| 8 | unused | ||||||||
| 9 | SUMITOMO | 8240-0214 | 1.5x0.64F | BU | 2.00 | X012 | 2 | ||
| 10 | unused | ||||||||
| 11 | SUMITOMO | 8240-0215 | 1.5x0.64F | GN | 0.35 | X603 | 2 | ||
| 12 | unused | ||||||||
| 13 | unused | ||||||||
| 14 | unused | ||||||||
| 15 | unused | ||||||||
| 16 | unused | ||||||||
| 17 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | G012 | 12 | ||
| 18 | SUMITOMO | 8240-0214 | 1.5x0.64F | BK | 2.00 | G012 | 11 | ||
