Connector End View - X102 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1015345-00-A
Connector MOLEX 33471-0201
Color BK
Connector Location:

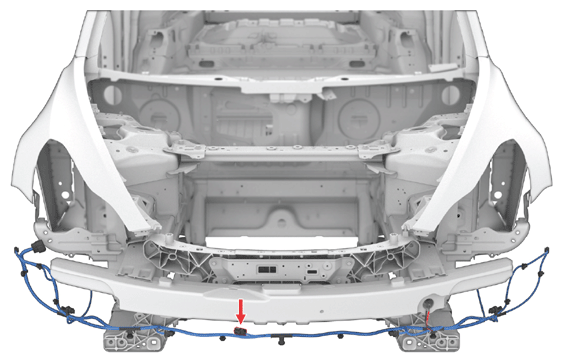

Fig 1: Connector Component Location - X102 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

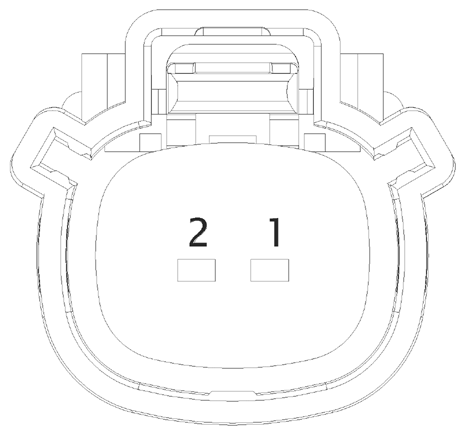

Fig 2: Connector End View - X102 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3002 | 1.5x0.8F | WH | 1.00 | TESLA | MAT-120-240 | X901F | 8 |
| 2 | MOLEX | 33012-3002 | 1.5x0.8F | BK | 1.00 | TESLA | MAT-120-240 |
