Connector End View - X090 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1077101-00-A

Connector SUMITOMO 6189-6987

Color GY

Connector Location:

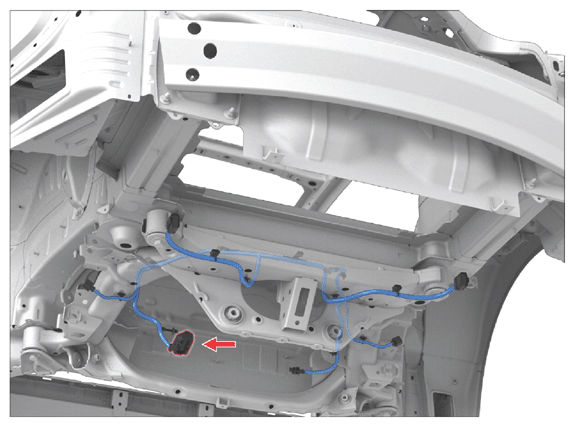

Fig 1: Connector Component Location - X090 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

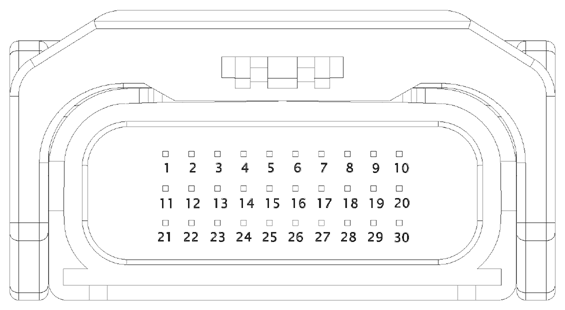

Fig 2: Connector End View - X090 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X952F	7
3	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X950F	9
4	SUMITOMO	8100-3456	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X952F	9
5	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X950F	16
6	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X950F	3
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X091	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X091	5
9	unused
10	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X092	2
11	unused
12	SUMITOMO	8100-3456	0.64x0.64FS	BN/WH	0.35	SUMITOMO	7165-1312	X952F	6
13	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X952F	14
14	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X950F	14
15	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X950F	1
16	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X091	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X091	4
18	unused
19	unused
20	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X950F	5
21	unused
22	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X950F	10
23	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X952F	8
24	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X950F	15
25	SUMITOMO	8100-3456	0.64x0.64FS	GY	0.35	SUMITOMO	7165-1312	X950F	2
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X091	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X091	10
28	unused
29	unused
30	SUMITOMO	8100-3456	0.64x0.64FS	YE/LTBU	0.35	SUMITOMO	7165-1312	X950F	4
