Connector End View - X086 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Tesla Part Number 1045248-00-A
Connector FEP 42511400
Color BK
Connector Location:

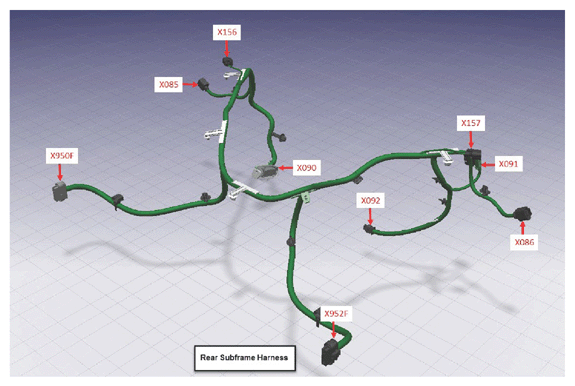

Fig 1: Connector Component Location - X086 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
Connector Pinout:

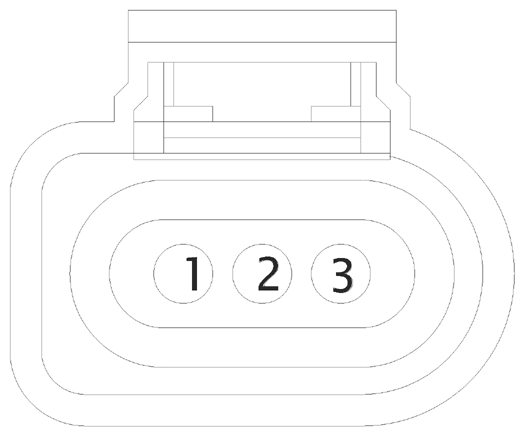

Fig 2: Connector End View - X086 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
CONNECTOR DETAILS
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1564324-2 | 1.5x0.6FS | GN | 0.35 | AMP | 964971-1 | X952F | 13 |
| 2 | AMP | 1564324-2 | 1.5x0.6FS | YE | 0.35 | AMP | 964971-1 | X952F | 12 |
| 3 | AMP | 1564324-2 | 1.5x0.6FS | BN | 0.35 | AMP | 964971-1 | X952F | 11 |
