Connector End View - X059 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1047432-00-A

Connector SUMITOMO 6098-4740

Color WH

Connector Location:

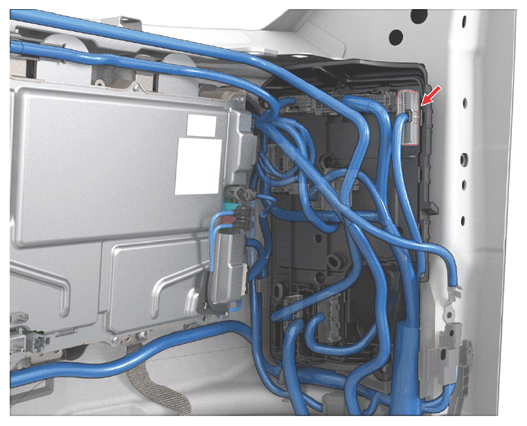

Fig 1: Connector Component Location - X059 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

G16612542

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X059 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

G16612543

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	unused
4	unused
5	unused
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	9
10	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35			X954M	10
11	unused
12	unused
13	unused
14	SUMITOMO	8100-3625	0.64x0.64F	RD	0.50			X908M	15
15	unused
16	unused
17	unused
18	unused
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X954M	18
21	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X954M	19
22	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X954M	17
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X954M	16
24	unused
25	unused
26	unused
27	unused
28	unused
29	unused
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X908M	10
31	unused
32	unused
33	unused
34	unused
35	unused
36	unused
