Connector End View - X057 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1048099-03-A

Connector YAZAKI 7287-1918-90

Color BU

Connector Location:

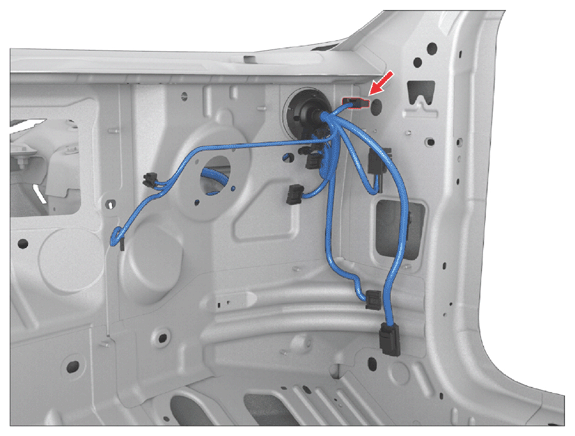

Fig 1: Connector Component Location - X057 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X057 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50	X908F	15
2	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X010	21
3	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X901M	2
4	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X901M	3
5	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X010	68
6	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X901M	15
7	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X010	65
8	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X037	17
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X037	16
10	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X170	2
11	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X170A	1
12	unused
13	unused
14	SUMITOMO	8240-0213	1.5x0.64F	TN	1.00	X918F	1
15	unused
16	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X901M	7
17	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X901M	4
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X901M	5
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X901M	6
20	SUMITOMO	8100-3625	0.64x0.64F	BK	0.50	X905F	10
21	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50	X905F	9
22	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X121	12
23	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X121A	11
24	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X121	2
25	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X121	1
26	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35	X901M	10
