Connector End View - X051 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1506906-01-A

Connector SUMITOMO 6098-8975

Color GY

Connector Location:

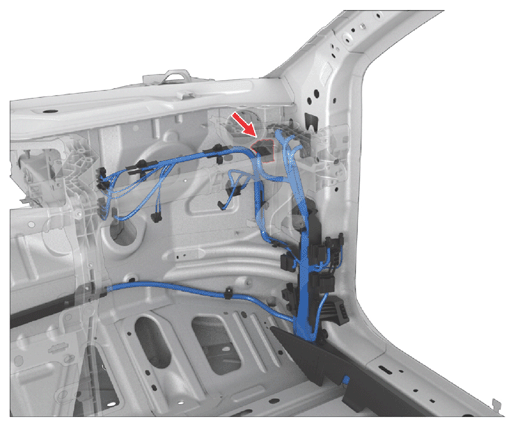

Fig 1: Connector Component Location - X051 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

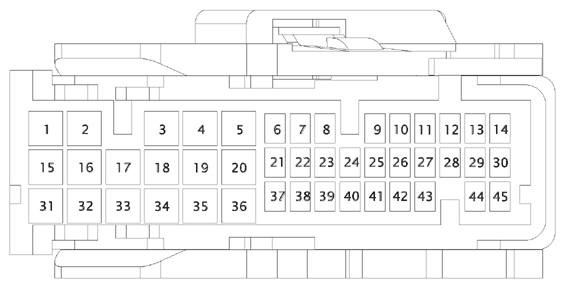

Fig 2: Connector End View - X051 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0214	1.5x0.64F	BU	1.50	X926M	12
2	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50	X926M	1
3	SUMITOMO	8240-0214	1.5x0.64F	RD	1.50	X952M	10
4	SUMITOMO	8240-0214	1.5x0.64F	GN	1.50	X163	1
5	SUMITOMO	8240-0214	1.5x0.64F	BK	1.50	X163	2
6	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X926M	16
7	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X962M	7
8	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X954M	3
9	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X954M	6
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X926M	15
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X962M	8
13	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35	X179	2
14	SUMITOMO	8100-3625	0.64x0.64F	YE/LTBU	0.35	X936M	10
15	SUMITOMO	8240-0214	1.5x0.64F	GN	2.00	X171A	1
16	SUMITOMO	8240-0214	1.5x0.64F	RD	2.00	X171A	2
17	SUMITOMO	8240-0215	1.5x0.64F	BN	0.50	X677	2
18	unused
19	SUMITOMO	8240-0215	1.5x0.64F	WH	0.50	X171A	6
20	SUMITOMO	8240-0214	1.5x0.64F	GY	2.00	X561	2
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X926M	13
22	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X926M	17
23	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X954M	8
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X954M	5
25	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35	X926M	7
26	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X962M	1
27	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X926M	14
28	unused
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X179	3
30	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X936M	22
31	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50	X175A	10
32	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50	X175A	9
33	SUMITOMO	8240-0215	1.5x0.64F	BK	0.50	X175A	13
34	SUMITOMO	8240-0215	1.5x0.64F	TN	0.50	X175A	14
35	SUMITOMO	8240-0215	1.5x0.64F	YE	0.50	X171A	5
36	SUMITOMO	8240-0214	1.5x0.64F	TN	2.00	X561	1
37	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35	X908M	2
38	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X954M	4
39	unused
40	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X674	1
41	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X954M	2
42	SUMITOMO	8100-3625	0.64x0.64F	GY	0.50	X098	12
43	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X908M	9
44	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X949M	8
45	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X949M	1
