Connector End View - X037 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number 1043176-00-A

Connector SUMITOMO 6098-4756

Color NA

Connector Location:

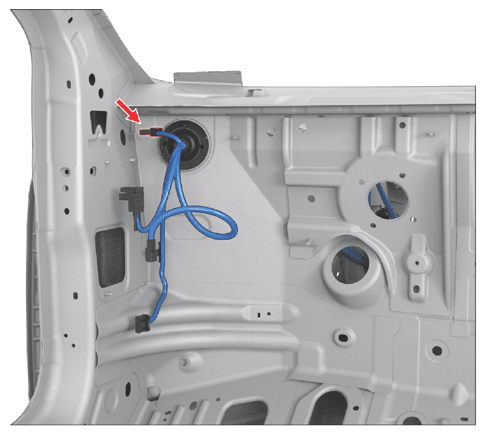

Fig 1: Connector Component Location - X037 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X037 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Courtesy of TESLA, INC.

CONNECTOR DETAILS

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35
4	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35
5	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X010	33
6	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X010	18
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X202	1
8	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35	X202	2
9	unused
10	unused
11	unused
12	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X170	4
13	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35	X170A	3
14	SUMITOMO	8100-3625	0.64x0.64F	DKGN/WH	0.35	X121A	9
15	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35	X121	10
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35	X057	9
17	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35	X057	8
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35	X253	1
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35	X253	2
20	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35	X203	1
21	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X203	2
22	unused
23	unused
24	unused
25	unused
26	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35	X252	1
27	SUMITOMO	8100-3625	0.64x0.64F	BK	0.35	X252	2
28	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50	X908F	10
