Connector End View - X035 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1506906-01-A

Connector  SUMITOMO 6098-8975

Color  GY

Connector Location:  Currently not available

Connector Pinout:

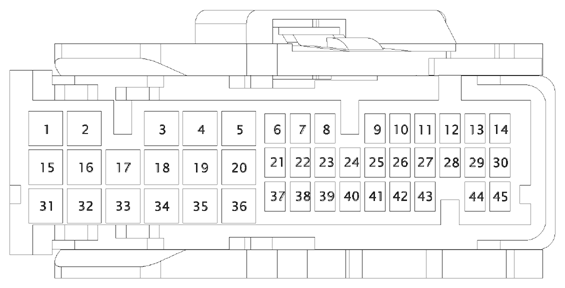

Fig 1: Connector End View - X035 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612505Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8240-0215 1.5x0.64F VT 0.35     X200 8
2 SUMITOMO 8240-0215 1.5x0.64F BK 0.35     X200 7
3 unused
4 unused
5 SUMITOMO 8240-0213 1.5x0.64F VT 0.75     X180 7
6 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X200 52
7 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X182 12
8 unused
9 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X200 46
10 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 43
11 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X200 48
12 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X180 3
13 SUMITOMO 8100-3625 0.64x0.64F BN/WH 0.35     X180 2
14 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X181 14
15 SUMITOMO 8240-0215 1.5x0.64F GN 0.50     X182 2
16 SUMITOMO 8240-0215 1.5x0.64F WH 0.35     X200 4
17 SUMITOMO 8240-0215 1.5x0.64F VT 0.35     X200 31
18 SUMITOMO 8240-0215 1.5x0.64F GY 0.35     X200 32
19 unused
20 SUMITOMO 8240-0214 1.5x0.64F BK 2.00
21 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 51
22 unused
23 unused
24 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X182 8
25 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X200 45
26 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X200 44
27 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X200 47
28 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X200 49
29 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X200 50
30 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X181 6
31 SUMITOMO 8240-0215 1.5x0.64F BU 0.50     X182 1
32 SUMITOMO 8240-0215 1.5x0.64F BU 0.35     X200 3
33 SUMITOMO 8240-0215 1.5x0.64F RD 0.35     X181 16
34 SUMITOMO 8240-0215 1.5x0.64F GN 0.35     X181 3
35 SUMITOMO 8240-0215 1.5x0.64F WH 0.50     X182 6
36 SUMITOMO 8240-0215 1.5x0.64F RD 0.50     X182 5
37 unused
38 unused
39 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X182 7
40 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X182 11
41 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X180 14
42 unused
43 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X280 1
44 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X180 1
45 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X181 11
