Connector End View - X033A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1506908-02-A

Connector  SUMITOMO 6098-8953

Color  WH

Connector Location:

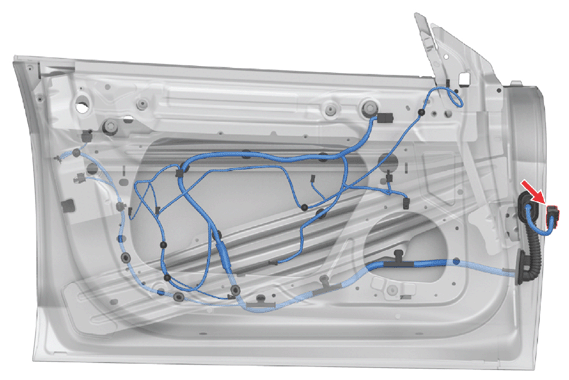

Fig 1: Connector Component Location - X033A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612501Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X033A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612502Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X373 2
2 SUMITOMO 8240-0182 0.64x0.64F GY 0.13     X376 12
3 SUMITOMO 8240-0182 0.64x0.64F YE 0.13     X376 5
4 SUMITOMO 8240-0182 0.64x0.64F WH 0.13     X366 3
5 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X367 4
6 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X367 2
7 SUMITOMO 8240-0182 0.64x0.64F WH 0.13     X374 3
8 SUMITOMO 8240-0182 0.64x0.64F VT 0.13     X376 9
9 SUMITOMO 8240-0182 0.64x0.64F YE 0.13     X376 8
10 SUMITOMO 8240-0182 0.64x0.64F GN 0.13     X376 2
11 SUMITOMO 8240-0182 0.64x0.64F GY 0.13     X365 5
12 SUMITOMO 8240-0182 0.64x0.64F YE 0.13     X366 2
13 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X371 1
14 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X373 4
15 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X204 2
16 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X204 1
17 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X380 1
18 SUMITOMO 8240-0182 0.64x0.64F RD 0.13     X376 4
19 SUMITOMO 8240-0182 0.64x0.64F VT 0.13     X365 4
20 SUMITOMO 8240-0182 0.64x0.64F BN 0.13     X365 3
21 SUMITOMO 8240-0182 0.64x0.64F YE 0.13     X365 2
22 SUMITOMO 8240-0182 0.64x0.64F GN 0.13     X365 1
23 SUMITOMO 8240-0182 0.64x0.64F BU 0.13     X376 10
24 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X373 3
25 unused
26 unused
27 unused
28 unused
29 SUMITOMO 8240-0215 1.5x0.64F VT 0.50     X565 2
30 SUMITOMO 8240-0215 1.5x0.64F BK 0.50     X565 1
31 SUMITOMO 8240-0213 1.5x0.64F RD 1.00     X567 2
32 SUMITOMO 8240-0213 1.5x0.64F WH 1.00     X567 1
33 SUMITOMO 8240-0213 1.5x0.64F BK 1.00
34 SUMITOMO 8240-0214 1.5x0.64F TN 1.50     X373 1
35 SUMITOMO 8240-0214 1.5x0.64F RD 1.50     X373 5
