Connector End View - X031 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1506906-01-A

Connector  SUMITOMO 6098-8975

Color  GY

Connector Location:

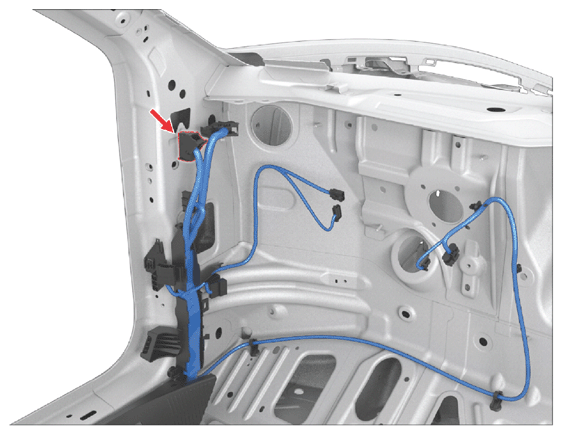

Fig 1: Connector Component Location - X031 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612497Courtesy of TESLA, INC.

Connector Pinout:

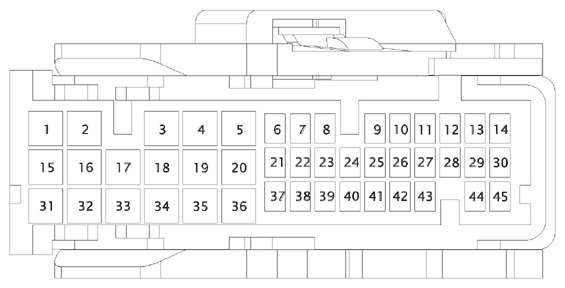

Fig 2: Connector End View - X031 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612498Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8240-0214 1.5x0.64F WH 1.50     X924M 1
2 SUMITOMO 8240-0214 1.5x0.64F RD 1.50     X162 1
3 SUMITOMO 8240-0214 1.5x0.64F BU 2.00     X930F 1
4 SUMITOMO 8240-0215 1.5x0.64F GY 0.50     X924M 10
5 SUMITOMO 8240-0214 1.5x0.64F YE 2.00     X930F 15
6 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X685 1
7 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X924M 16
8 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X924M 2
9 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X296 1
10 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X270 2
11 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X270 3
12 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X270 5
13 SUMITOMO 8100-3625 0.64x0.64F YE/LTBU 0.35     X950M 4
14 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X950M 5
15 SUMITOMO 8240-0214 1.5x0.64F GY 1.50     X924M 12
16 SUMITOMO 8240-0215 1.5x0.64F GN 0.35     X685 2
17 SUMITOMO 8240-0214 1.5x0.64F GY 1.50     X162 2
18 SUMITOMO 8240-0214 1.5x0.64F BN 2.00     X930F 26
19 SUMITOMO 8240-0215 1.5x0.64F WH 0.50     X924M 9
20 unused
21 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X950M 10
22 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X930F 6
23 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X924M 14
24 SUMITOMO 8100-3625 0.64x0.64F VT 0.35     X924M 7
25 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X168 2
26 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X686 9
27 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X686 7
28 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X686 8
29 SUMITOMO 8100-3625 0.64x0.64F YE/LTBU 0.35     X909M 16
30 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X909M 17
31 SUMITOMO 8240-0214 1.5x0.64F BU 2.00     X353 8
32 SUMITOMO 8240-0214 1.5x0.64F VT 2.00     X353 5
33 SUMITOMO 8240-0214 1.5x0.64F RD 2.00     X936F 1
34 SUMITOMO 8240-0214 1.5x0.64F WH 2.00     X936F 15
35 SUMITOMO 8240-0215 1.5x0.64F VT 0.50     X936F 18
36 SUMITOMO 8240-0215 1.5x0.64F BK 0.50     X936F 4
37 unused
38 unused
39 unused
40 SUMITOMO 8100-3625 0.64x0.64F GY 0.35     X673 2
41 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X685 4
42 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X936F 22
43 SUMITOMO 8100-3625 0.64x0.64F YE/LTBU 0.35     X936F 10
44 SUMITOMO 8100-3625 0.64x0.64F YE/DKBU 0.35     X201 72
45 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X201 71
