Connector End View - X030A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1506907-02-A

Connector  SUMITOMO 6098-8950

Color  WH

Connector Location:

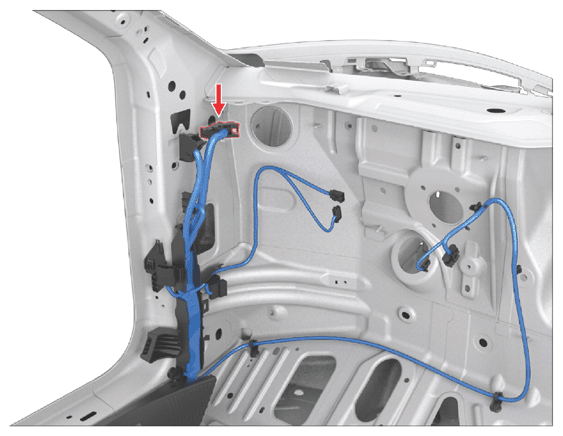

Fig 1: Connector Component Location - X030A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612493Courtesy of TESLA, INC.

Connector Pinout:

Fig 2: Connector End View - X030A (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612494Courtesy of TESLA, INC.
CONNECTOR DETAILS

Cavity Terminal Manufacturer Terminal Part Number Terminal Size Wire Color Wire Size Wire Seal Manufacturer Wire Seal PN Wire Dest. Desg. Wire Dest. Cavity
1 SUMITOMO 8100-3625 0.64x0.64F BN/WH 0.35     X930F 18
2 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X930F 19
3 SUMITOMO 8100-3625 0.64x0.64F DKGN 0.35     X201 53
4 SUMITOMO 8100-3625 0.64x0.64F GN/WH 0.35     X201 54
5 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X685 3
6 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X981M 18
7 SUMITOMO 8100-3625 0.64x0.64F VT 0.50     X041 2
8 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X950M 7
9 SUMITOMO 8100-3625 0.64x0.64F TN 0.35     X930F 2
10 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X930F 8
11 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X924M 13
12 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X493 1
13 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X924M 8
14 SUMITOMO 8100-3625 0.64x0.64F BN 0.35     X924M 3
15 unused
16 unused
17 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X924M 5
18 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X924M 6
19 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X935F 20
20 SUMITOMO 8100-3625 0.64x0.64F WH 0.35     X950M 8
21 SUMITOMO 8100-3625 0.64x0.64F BU 0.35     X950M 6
22 SUMITOMO 8100-3625 0.64x0.64F BK 0.35     X924M 15
23 SUMITOMO 8100-3625 0.64x0.64F GN 0.35     X924M 17
24 SUMITOMO 8100-3625 0.64x0.64F YE 0.35     X930F 4
25 SUMITOMO 8100-3625 0.64x0.64F RD 0.35     X497 4
26 SUMITOMO 8240-0215 1.5x0.64F YE 0.35     X981M 19
27 SUMITOMO 8240-0215 1.5x0.64F GN 0.35     X950M 9
28 SUMITOMO 8240-0215 1.5x0.64F TN 0.35     X096 10
29 SUMITOMO 8240-0215 1.5x0.64F VT 0.50     X686 3
30 SUMITOMO 8240-0215 1.5x0.64F GY 0.50     X686 2
31 SUMITOMO 8240-0215 1.5x0.64F GN 0.50     X686 1
32 SUMITOMO 8240-0215 1.5x0.64F RD 0.50     X676 2
