Connector End View - G098 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)

Tesla Part Number  1449968-00-A

Connector  DELPHI 35093000

Color  Currently not available

Connector Location:

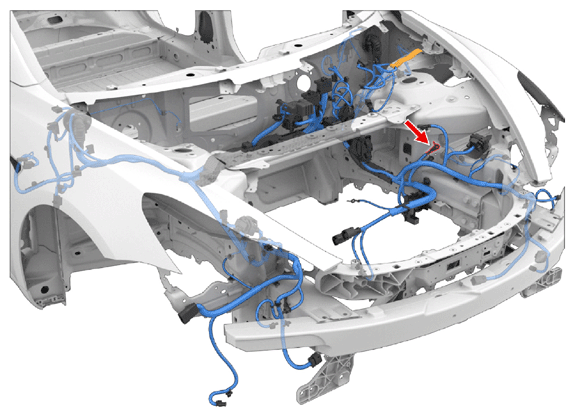

Fig 1: Connector Component Location - G098 (Fremont: 01/17/2022 - 12/31/2023 | Shanghai: 11/12/2021 - 08/31/2023)
G16612472Courtesy of TESLA, INC.

Connector Pinout:
