Switch - Back Rest and Cushion Adjust - Driver Seat - Remove and Replace: Install

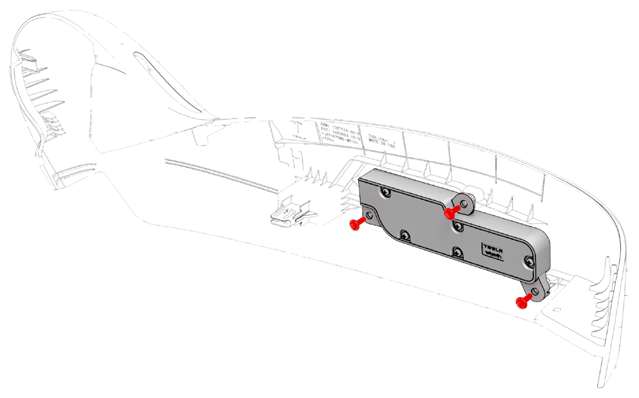

  1. Install the driver seat backrest and cushion adjust switch to the outboard side shield, and then install the screws that attach the switch to the side shield.

    1.7 N.m (1.3 ft-lbs)

    G14740160Courtesy of TESLA, INC.

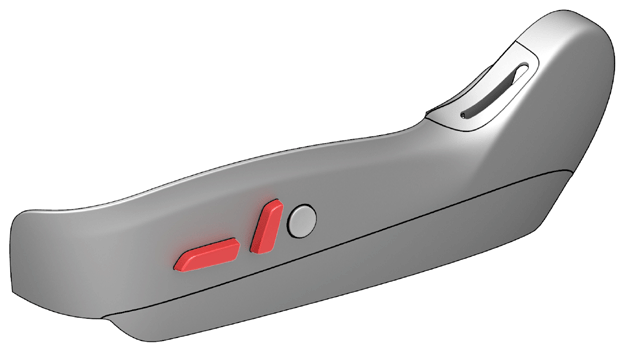

  2. Install the seat cushion and seat back buttons to the outboard side shield, and then fasten the clips that attach the seat cushion and seat back buttons to the driver seat backrest and cushion adjust switch.
    G14740161Courtesy of TESLA, INC.
  3. Install the driver seat outboard side shield. See SIDE SHIELD - OUTBOARD - DRIVER SEAT (REMOVE AND REPLACE) .
