Frame - Seat Cushion - Driver Seat - Remove and Replace: Install

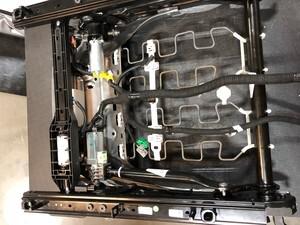

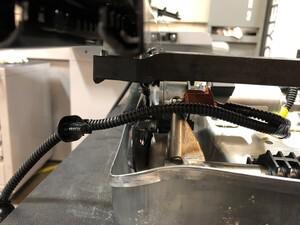

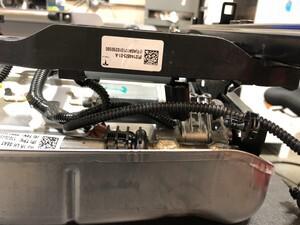

  1. Position the driver seat harness to seat frame for installation
    NOTE: Make sure the harness is routed properly, The main branch of the harness should line up with the center cut out for the center clip, Route the inboard and outboard legs of the harness between the track and the frame, Both inboard and outboard legs should wrap around the front of the frame
    G00622583Courtesy of TESLA, INC.
    G00622584Courtesy of TESLA, INC.
    G00622585Courtesy of TESLA, INC.

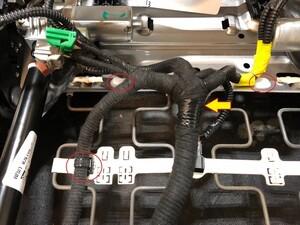

  2. Install clips securing the driver seat harness to seat cushion frame
    NOTE: 4x clips
    G00622586Courtesy of TESLA, INC.

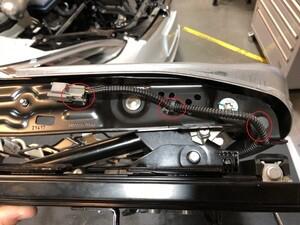

  3. Install clips securing the driver seat harness to inboard side of seat cushion frame
    NOTE: 3x clips
    G00622587Courtesy of TESLA, INC.

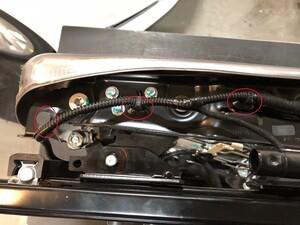

  4. Install clips securing the driver seat harness to outboard side of seat cushion frame
    NOTE: 3x clips
    G00622588Courtesy of TESLA, INC.

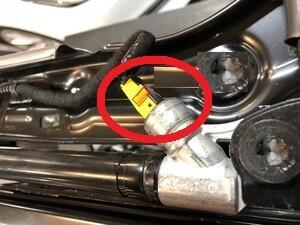

  5. Connect the driver pre-tensioner connector
    NOTE: 1x connector, The pre-tensioner is a two-stage connector, Ensure the lock is engaged after the connector is fully seated
    G00622589Courtesy of TESLA, INC.

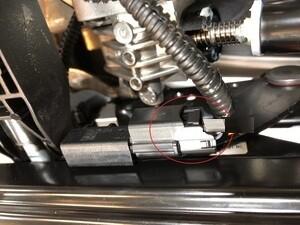

  6. Connect the seat track motor connector
    NOTE: 1x connector.
    G00622590Courtesy of TESLA, INC.

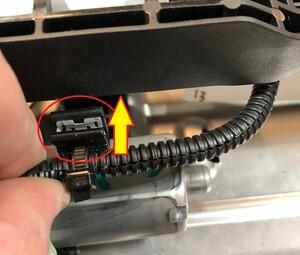

  7. Install the seat track harness connector to the seat track motor
    NOTE: 1x edge clip
    G00622591Courtesy of TESLA, INC.

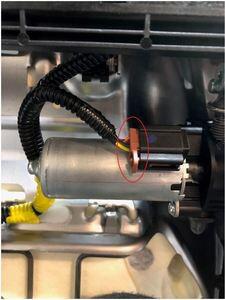

  8. Connect the tilt motor connector
    NOTE: 1x connector
    G00622592Courtesy of TESLA, INC.

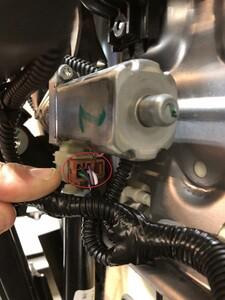

  9. Connect the lift motor connector
    NOTE: 1x connector
    G00622593Courtesy of TESLA, INC.
  10. If equipped, position the seat track position sensor on the new seat track assembly, and then install the screw that attaches the sensor to the seat track assembly.

    2 Nm (1.5 lbs-ft)

    Tip: Use of the following tool(s) is recommended:

    • T20 socket
    G00650751Courtesy of TESLA, INC.
    G00650752Courtesy of TESLA, INC.
  11. Connect seat track position sensor
    NOTE: 1x connector
    G00622594Courtesy of TESLA, INC.

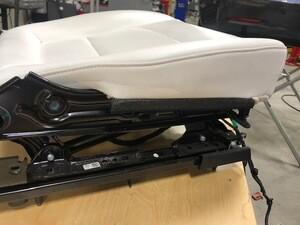

  12. Place the cushion pad assembly onto seat cushion frame for installation
    NOTE: Insert the rear of the seat cushion to seat bottom frame and then lower the rest on the seat cushion to the seat bottom frame, Ensure wiring harness are routed through the back of seat frame
    G00622595Courtesy of TESLA, INC.
  13. Install the heat pad connector to the seat frame
    NOTE: 1x connector, 1x clip, Slide connector onto seat frame clip to secure
    G00622596Courtesy of TESLA, INC.

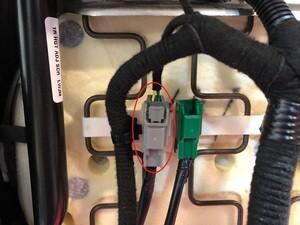

  14. Connect the heat pad connector
    NOTE: 1x connector
    G00622597Courtesy of TESLA, INC.

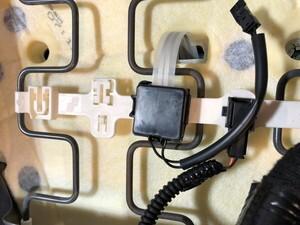

  15. Install the seat occupied sensor onto the seat frame
    NOTE: 1x clip
    G00622598Courtesy of TESLA, INC.

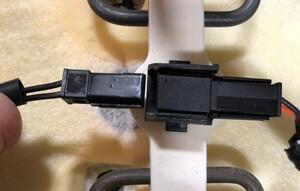

  16. Connect the seat occupied sensor connector
    NOTE: 1x connector
    G00622599Courtesy of TESLA, INC.

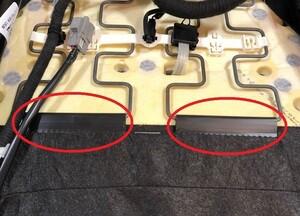

  17. Install the seat cushion retaining clips onto the seat suspension
    NOTE: 2x clips, The seat cushion and trim may need to be pulled tight for the hooks to achieve correct placement on the seat suspension
    G00622600Courtesy of TESLA, INC.

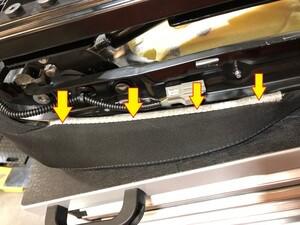

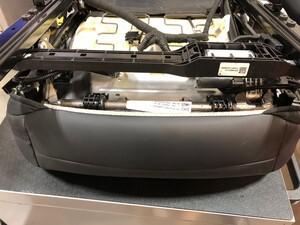

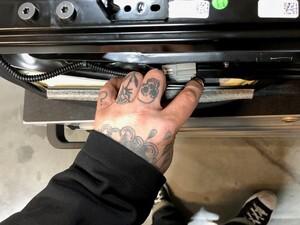

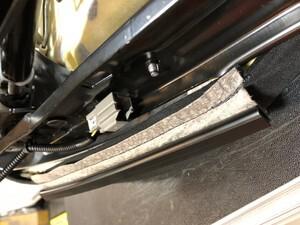

  18. Install the inboard seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00622601Courtesy of TESLA, INC.
    G00622602Courtesy of TESLA, INC.
    G00622603Courtesy of TESLA, INC.
  19. Install the front seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00622604Courtesy of TESLA, INC.
    G00622605Courtesy of TESLA, INC.
    G00622606Courtesy of TESLA, INC.

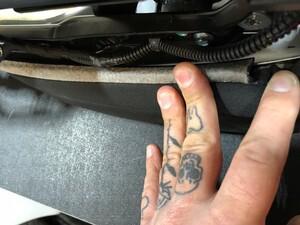

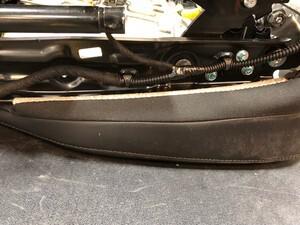

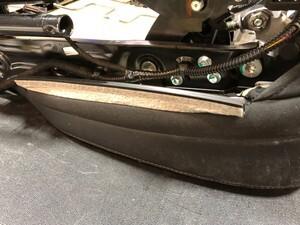

  20. Install the outboard seat trim retaining clip onto the seat frame
    NOTE: 1x clip strip, Fold the clip over towards the frame, The open end should engage the seat frame, if not the trim will need to be pulled until the correct amount of tension is achieved, Line up one end of the clip strip opening with the seat frame and press down until the clip is fully seated onto the frame
    G00622607Courtesy of TESLA, INC.
    G00622608Courtesy of TESLA, INC.
    G00622609Courtesy of TESLA, INC.

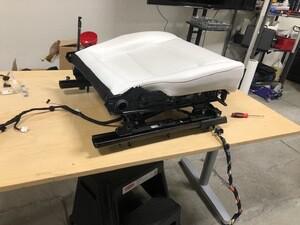

  21. Return seat to upright position
    G00622610Courtesy of TESLA, INC.

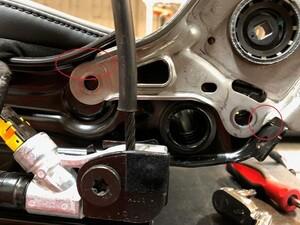

  22. Place the seat back frame onto the cushion frame for installation
    NOTE: The seat back frame can rest on the cushion frame without fasteners
    G00622611Courtesy of TESLA, INC.

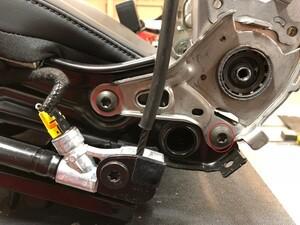

  23. Install the outboard fasteners securing the seat back frame to the cushion frame
    NOTE: 2x patch bolts, T50, 43 N.m, Install new patch bolts
    G00622612Courtesy of TESLA, INC.

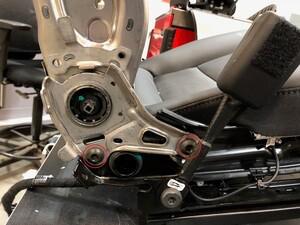

  24. Install the inboard fasteners securing the seat back frame to the cushion frame.
    NOTE: 2x patch bolts, T50, 43 N.m, Install new patch bolts
    G00622613Courtesy of TESLA, INC.

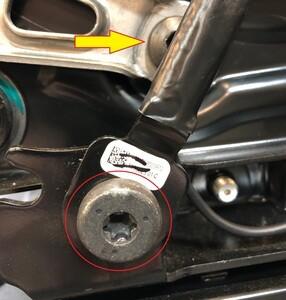

  25. Install the seat belt buckle onto the cushion frame.
    NOTE: 1x patch bolt, T50, 40 N.m, Install new patch bolt.
    G00622614Courtesy of TESLA, INC.
  26. Connect seat belt buckle connector.
    NOTE: 1x connector.
    G00622615Courtesy of TESLA, INC.

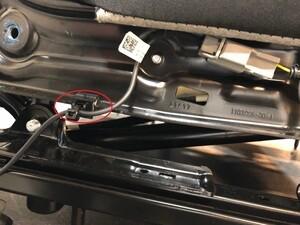

  27. Install the seat belt buckle harness clip.
    NOTE: 1x clip
    G00622616Courtesy of TESLA, INC.

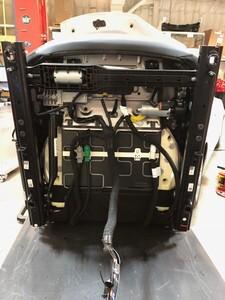

  28. Rotate the seat to gain access to the underside of the seat.
    NOTE: Protect seat cushion from damage.
    G00622617Courtesy of TESLA, INC.

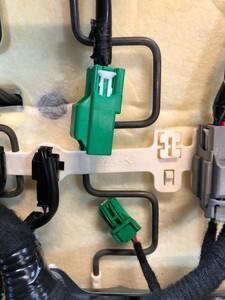

  29. Install the seat back harness connector to the seat bottom.
    G00622618Courtesy of TESLA, INC.

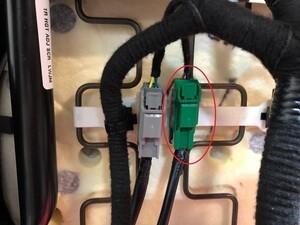

  30. Connect the seat heater harness.
    NOTE: 1x connector.
    G00622619Courtesy of TESLA, INC.

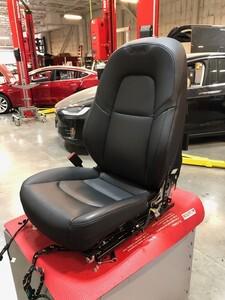

  31. Rotate the seat back to the upright position.
    G00622620Courtesy of TESLA, INC.

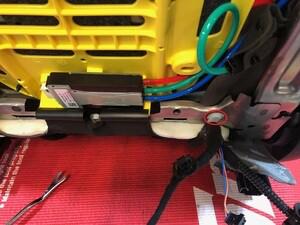

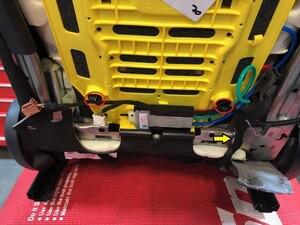

  32. Install the seat harness to seat back frame for installation.
    NOTE: 3x clips
    G00622621Courtesy of TESLA, INC.
    G00622622Courtesy of TESLA, INC.

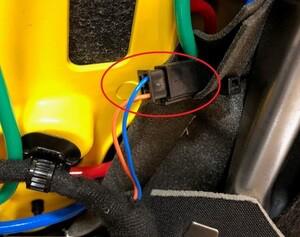

  33. Connect the lumbar pump.
    NOTE: 1x connector.
    G00622623Courtesy of TESLA, INC.

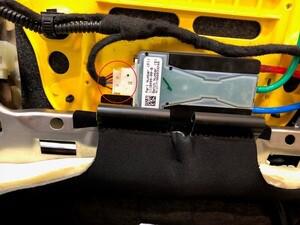

  34. Secure the clips (x3) that attach the driver seat harness to the LH side seat track and frame.
    NOTE: 1x connector.
    G00622624Courtesy of TESLA, INC.

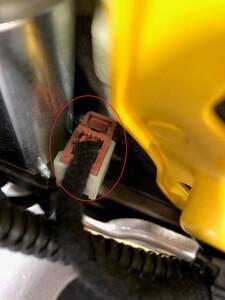

  35. Connect the recliner motor.
    NOTE: 1x connector.
    G00622625Courtesy of TESLA, INC.

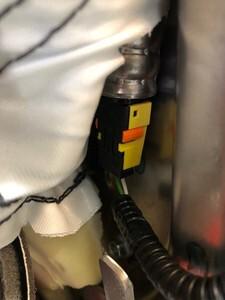

  36. Connect LH front seat side air bag.
    NOTE: 1x connector.
    G00622626Courtesy of TESLA, INC.

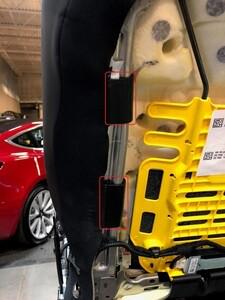

  37. Install the clips holding the outboard seat back trim to the seat frame.
    NOTE: 1x clips.
    G00622627Courtesy of TESLA, INC.

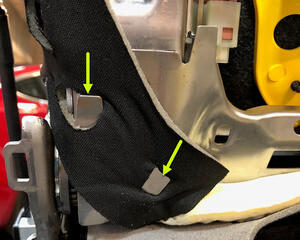

  38. Install the upper flap covering the outboard corner of the seat back frame.
    NOTE: Note Pull the flap over the metal tangs to secure.
    G00622628Courtesy of TESLA, INC.

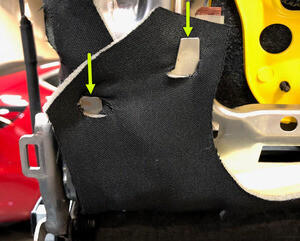

  39. Install the lower flap covering the outboard corner of the seat back frame.
    NOTE: Pull the flap over the metal tangs to secure
    G00622629Courtesy of TESLA, INC.

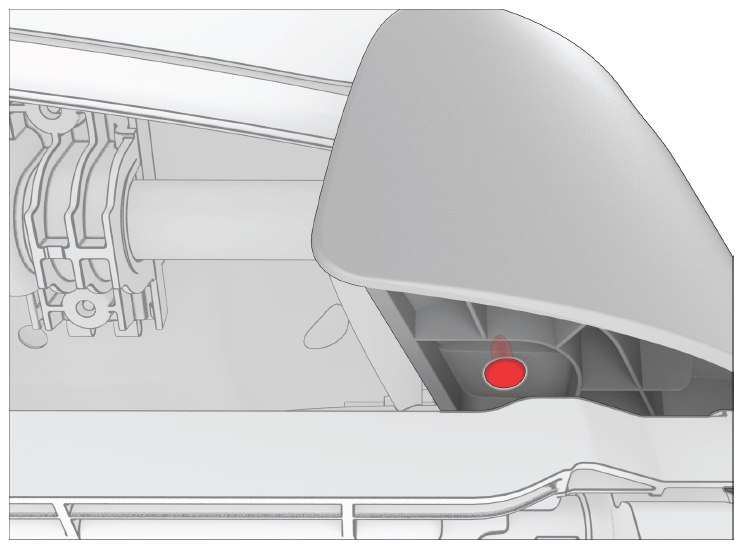

  40. Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace)
    G14740129Courtesy of TESLA, INC.
  41. Install the driver seat outboard side shield. See Side Shield - Outboard - Driver Seat (Remove and Replace) .
  42. Install the driver seat back shell. See Shell - Seat Back - Driver (Remove and Replace) .
  43. Install the driver headrest trim. See Trim - Headrest - Driver (Remove and Replace) .
  44. Install the driver seat into the vehicle. See SEAT ASSEMBLY - 1ST ROW (LH) - REMOVE AND REPLACE .
