Headliner (Non-Heat Pump) - Remove and Replace: Install

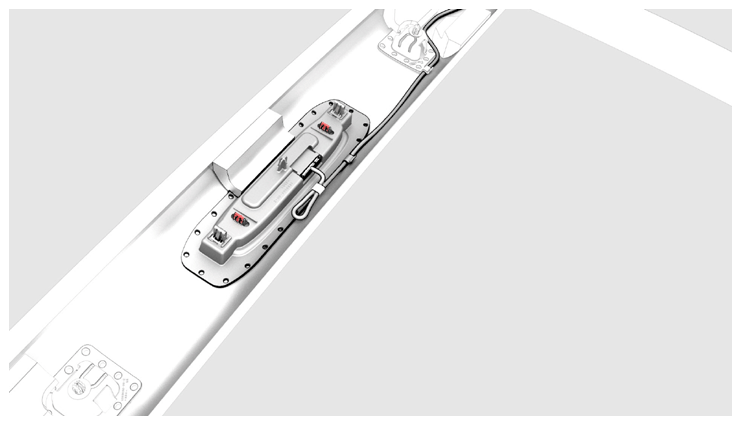

- Install the LH coat hook bezel to the LH coat hook assembly, and then fasten the clips that attach the coat hook bezel to the coat hook assembly.

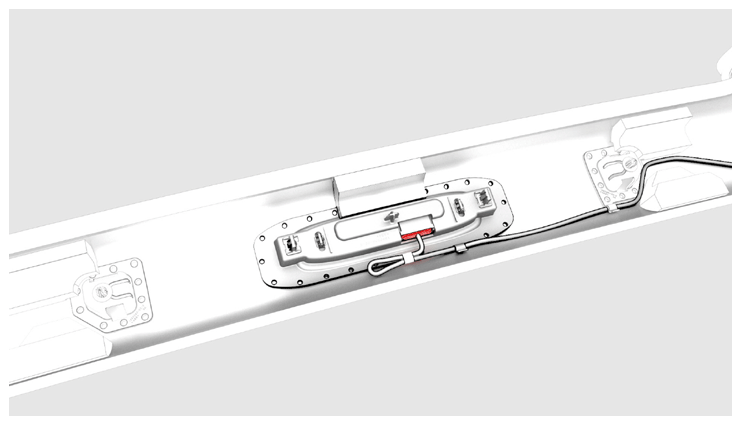

- Install the RH coat hook bezel to the RH coat hook assembly, and then fasten the clips that attach the coat hook bezel to the coat hook assembly.
- Install the rear overhead console to the headliner, and then fasten the clips that attach the overhead console to the headliner.
- Connect the electrical harness to the rear overhead console connector.

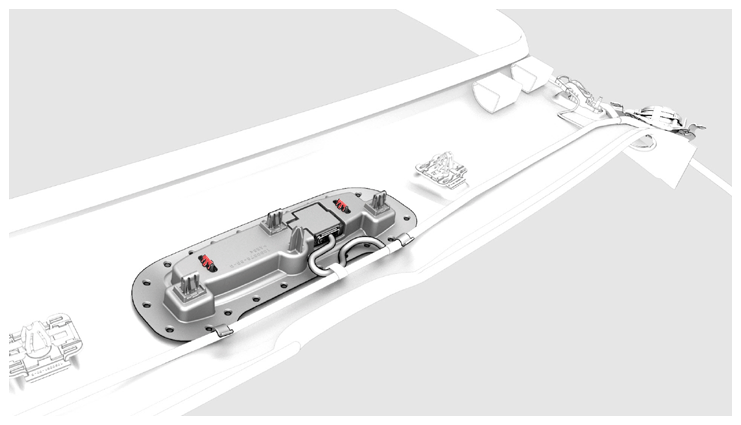

- Install the front overhead console to the headliner, and then fasten the clips that attach the overhead console to the headliner.
- Connect the electrical harness to the front overhead console connector.
- Install the LH and RH headliner tweeter covers to the headliner, and then fasten the clips that attach the tweeter covers to the headliner.

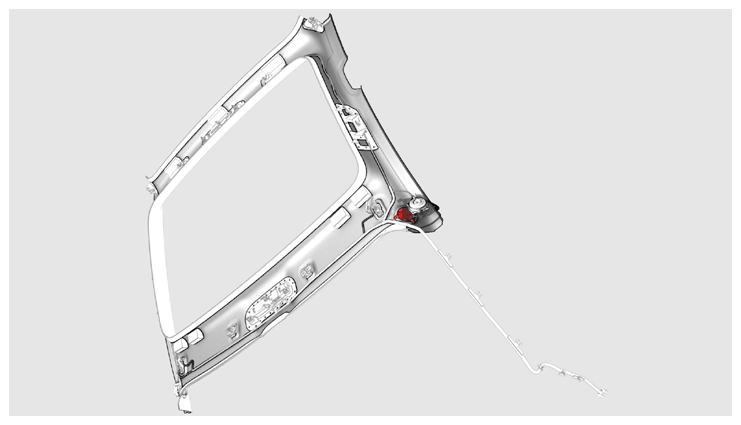

- Install the headliner. See Headliner (Non-Heat Pump) - Remove and Install
Tip: The headliner shipping bag might be useful as a "third hand" for installation.
- Lay the shipping bag flat with the opening toward you.
- Use scissors to cut both the top and bottom sides of the bag up the middle, until there is about 12 in (30 cm) left. The bag will look like a pair of pants.
- Open the vehicle front/rear (as appropriate) doors, set the bag on the vehicle roof, and then bring the "legs" of the bag through each doorway into the cabin.
- Tie the very ends of the legs together to make a very loose loop out of the cabin, over the roof, and back into the cabin. If the loop is too tight, cut a little more up the middle.
- Use the loop to support the headliner during installation. If the loop is too loose, tie an additional knot to reduce slack.
