Cap - Reservoir - Windshield Washer - Remove and Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE)

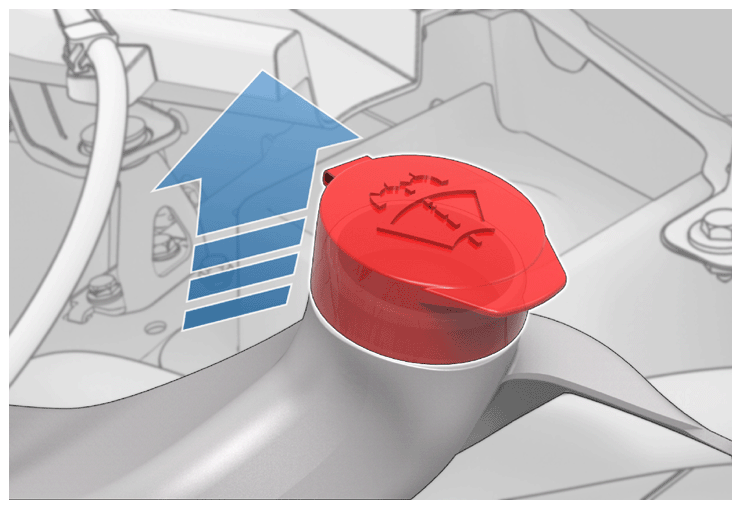

  2. Use a plastic trim tool to remove the cap from the windshield washer reservoir filler neck.
    NOTE: The cap and the retaining collar are a single piece.
    G14744456Courtesy of TESLA, INC.
