Carrier - Front End (Heat Pump) - Remove and Replace: Remove

  1. Open LH front door
    G00651631Courtesy of TESLA, INC.
  2. Open hood
    NOTE: Press "Open" button on touchscreen to release latch, Lift lid manually
    G00651632Courtesy of TESLA, INC.
    G00651633Courtesy of TESLA, INC.
  3. Remove rear apron
    NOTE: 12x clips, Only store rear apron visible face upwards
    G00651634Courtesy of TESLA, INC.
    G00651635Courtesy of TESLA, INC.

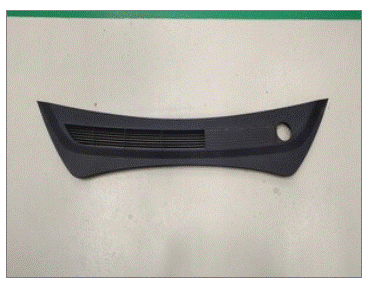

    G00651636Courtesy of TESLA, INC.
  4. Remove cabin intake upper duct assembly
    NOTE: 3x clips, Some configurations may come with 4x clips
    G00651637Courtesy of TESLA, INC.
    G00651638Courtesy of TESLA, INC.
  5. Remove closeout panel from frunk assembly
    NOTE: 4x clips, 1x connector, Frunk safety switch, 3x guide tabs, Grab closeout panel from bottom then pull it upward to release clips, Disconnect switch
    G00651639Courtesy of TESLA, INC.
    G00651640Courtesy of TESLA, INC.
  6. Remove bolts securing frunk assembly
    NOTE: 7x bolts, 10mm, 5 N.m, Lift up RBN covers to access upper fasteners, Newer vehicles may not be equipped with covers
    G00651641Courtesy of TESLA, INC.
  7. Remove frunk assembly from vehicle
    NOTE: 12x clips, Replace any clips if broken or missing, Number of clips may vary on older vehicles
    G00651642Courtesy of TESLA, INC.

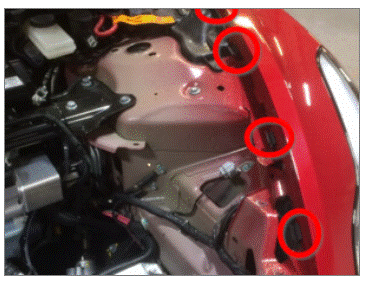

    G00651643Courtesy of TESLA, INC.
    G00651644Courtesy of TESLA, INC.
  8. Remove fasteners holding upper portion of front fascia to vehicle
    NOTE: 6x bolts, 10mm, 4 N.m
    G00651645Courtesy of TESLA, INC.
  9. Remove push clips securing LH front wheel arch liner to fascia and move to the side for access
    NOTE: 5x push clips, Turn the steering wheel to the RH for additional clearance between front wheel arch liner
    G00651646Courtesy of TESLA, INC.
    G00651647Courtesy of TESLA, INC.
    G00651648Courtesy of TESLA, INC.
  10. Loosen forward bolts securing LH corner of front fascia to fender
    NOTE: 2x bolts, 10mm, 4 N.m
    G00651649Courtesy of TESLA, INC.
  11. Remove bolt securing LH corner of fascia to fender
    NOTE: 1x bolt, 10mm, 3 N.m
    G00651650Courtesy of TESLA, INC.
  12. Remove push clips securing RH front wheel arch liner to fascia and move to the side for access
    NOTE: 5x push clips, Turn the steering wheel to the LH for additional clearance between wheel arch liner
    G00651651Courtesy of TESLA, INC.
    G00651652Courtesy of TESLA, INC.
    G00651653Courtesy of TESLA, INC.
  13. Loosen forward bolts securing RH front corner of front fascia to fender
    NOTE: 2x bolts, 10mm, 4 N.m
    G00651654Courtesy of TESLA, INC.
  14. Remove bolt securing RH front corner of front fascia to fender
    NOTE: 1x bolt, 10mm, 3 N.m

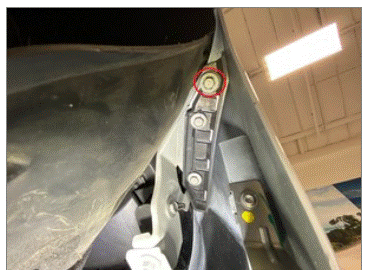

    G00651655Courtesy of TESLA, INC.
  15. Disconnect 12V harness for front fascia
    NOTE: 1x locking connector, Release the locking tab by sliding it away from the connector, Then depress the grey lock to release the connector
    G00651656Courtesy of TESLA, INC.
    G00651657Courtesy of TESLA, INC.
  16. Remove bolts securing valance to front aero shield
    NOTE: 4x bolts, 10mm, 5 N.m
    G00651658Courtesy of TESLA, INC.
  17. Release both front corners then release front of front fascia by pulling upward and away from vehicle and place onto padded surface
    NOTE: 8x clips, Recommend assistance, Use caution not to damage headlamp or fender during removal
    G00651659Courtesy of TESLA, INC.
    G00651660Courtesy of TESLA, INC.
    G00651661Courtesy of TESLA, INC.
    G00651662Courtesy of TESLA, INC.
    G00651663Courtesy of TESLA, INC.
    G00651664Courtesy of TESLA, INC.
  18. Disconnect active grille shutter actuator connector
    NOTE: 1x locking electrical connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
    G00651665Courtesy of TESLA, INC.
  19. Remove ambient temperature sensor cover from active grille shutter
    G00651666Courtesy of TESLA, INC.
  20. Disconnect ambient temperature sensor connector
    NOTE: 1x connector
    G00651667Courtesy of TESLA, INC.
  21. Disconnect hood latch open switch
    NOTE: 1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector
    G00651668Courtesy of TESLA, INC.
  22. Disconnect hood latch actuator
    NOTE: 1x connector
    G00651669Courtesy of TESLA, INC.
  23. Remove hood latch actuator from front end carrier
    NOTE: 2x bolts, 10mm, 5 N.m
    G00651670Courtesy of TESLA, INC.
  24. Remove hood latch from front end carrier
    NOTE: 2x bolts, 10mm, 8 N.m, Mark latch location for alignment when installing
    G00660251Courtesy of TESLA, INC.
  25. Remove LH center fascia reinforcement from front end carrier
    NOTE: 1x tab, 2x datums, Release locking tab under fascia reinforcement, then pull straight up to release fascia reinforcement
    G00660252Courtesy of TESLA, INC.
    G00660253Courtesy of TESLA, INC.
    G00660254Courtesy of TESLA, INC.
  26. Remove RH center fascia reinforcement from front end carrier
    NOTE: 1x tab, 2x datums, Release locking tab under fascia reinforcement, then pull straight up to release fascia reinforcement
    G00660255Courtesy of TESLA, INC.
    G00660256Courtesy of TESLA, INC.
    G00660254Courtesy of TESLA, INC.
  27. Disconnect front acceleration sensors
    NOTE: 1x connector, Do not push down on red tab, Pull red tab to disengage lock, Pull again to release connector, Disconnect LH, RH, and center front acceleration sensor
    G00660257Courtesy of TESLA, INC.
    G00660258Courtesy of TESLA, INC.
    G00660259Courtesy of TESLA, INC.
  28. Remove bolts securing front bumper beam with energy absorber to LH crush can
    NOTE: 2x bolts, 15mm, 75 N.m
    G00660260Courtesy of TESLA, INC.
  29. Remove bolts securing front bumper beam with energy absorber to RH crush can
    NOTE: 2x bolts, 15mm, 75 N.m
    G00660261Courtesy of TESLA, INC.
  30. Remove front bumper beam with energy absorber
    NOTE: Use a pry bar as needed to remove front bumper beam, Be cautious when prying not to damage body, Slightly tap with dead blow hammer to assist with removal as needed
    G00660262Courtesy of TESLA, INC.
    G00660263Courtesy of TESLA, INC.
  31. Disconnect LH FEM harness connector
    NOTE: 1x locking connector, Disengage locking tab
    G00660264Courtesy of TESLA, INC.
  32. Disconnect RH FEM harness connector
    NOTE: 1x locking connector, Disengage locking tab
    G00660265Courtesy of TESLA, INC.
  33. Remove radar assembly harness clip from FEM radar bracket
    NOTE: 1x clip
    G00660266Courtesy of TESLA, INC.
  34. Disconnect radar assembly connector
    NOTE: 1x connector
    G00660267Courtesy of TESLA, INC.
  35. Remove the FEM radar bracket from front end carrier
    NOTE: 4x bolts, 10mm, 8 N.m
    G00660268Courtesy of TESLA, INC.
  36. Install bungee cords and support cooling fan module assembly
    NOTE: 2x bungee cord
    G00660269Courtesy of TESLA, INC.
  37. Remove RH bolt securing cooling fan module assembly to front end carrier
    NOTE: 1x bolt, 8mm, 10 N.m, Recommend assistance to support the cooling fan module assembly
    G00660270Courtesy of TESLA, INC.
  38. Remove LH bolt securing cooling fan module assembly to front end carrier
    NOTE: 1x bolt, 8mm, 10 N.m, Recommend assistance to support the cooling fan module assembly
    G00660271Courtesy of TESLA, INC.
  39. Remove lower bolts securing front end carrier to vehicle
    NOTE: 4x bolts, 13mm, 16 N.m
    G00660272Courtesy of TESLA, INC.
  40. Remove ankle catcher from front end carrier
    NOTE: 2x datums, Slightly pull carrier outward to clear datum from ankle catcher
    G00660273Courtesy of TESLA, INC.
  41. Remove upper bolts securing front end carrier to vehicle and remove front end carrier
    NOTE: 2x bolts, 13mm, 16 N.m
    G00660274Courtesy of TESLA, INC.
    G00660275Courtesy of TESLA, INC.

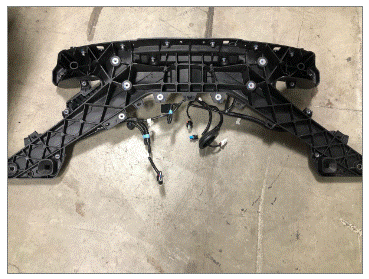

    G00660276Courtesy of TESLA, INC.
  42. Remove FEM harness from front end carrier
    NOTE: 5x clips
    8
    G00660277Courtesy of TESLA, INC.
