Connector End View - X950M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

Fig 1: Connector Component Location - X950M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Connector Detail: MOLEX 33482-8602

Color: GY

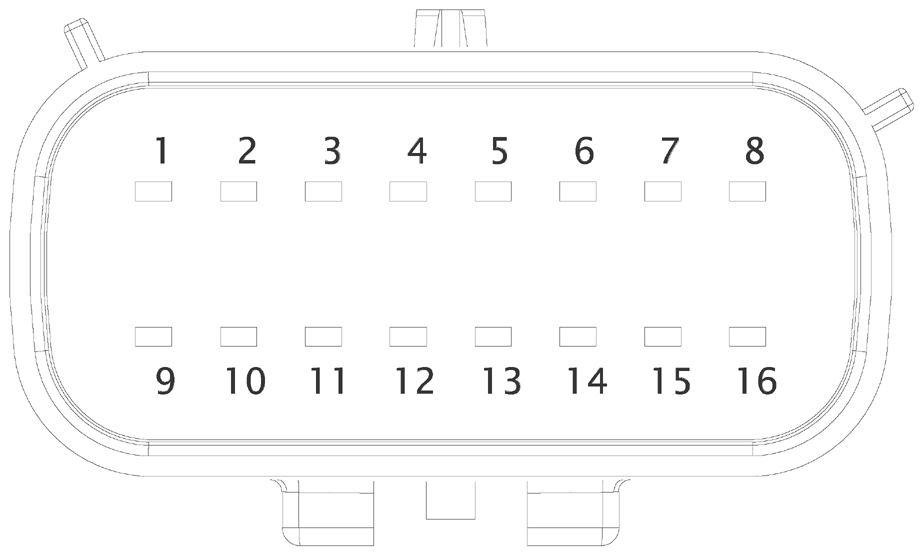

Fig 2: Connector End View - X950M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	RD	0.35	SN	X935M-46	33000-0004	MAT-120-240
2	GY	0.35	SN	X935M-47	33000-0004	MAT-120-240
3	YE	0.35	SN	X935M-48	33000-0004	MAT-120-240
4	WH	0.35	SN	X031-13	33000-0004	MAT-120-240
5	GN	0.35	SN	X031-14	33000-0004	MAT-120-240
6	RD	0.35	SN	X030A-21	33000-0004	MAT-120-240
7	YE	0.35	SN	X030A-8	33000-0004	MAT-120-240
8	WH	0.35	SN	X030A-20	33000-0004	MAT-120-240
9	YE	0.35	SN	X030A-27	33000-0004	MAT-120-240
10	VT	0.35	SN	X031-21	33000-0004	MAT-120-240
11
12	BK	1.50	SN	G041-3	33000-0001	MAT-120-240
13
14	BN	0.35	SN	X167-1	33000-0004	MAT-120-240
15	GN	0.35	SN	X935M-39	33000-0004	MAT-120-240
16	VT	0.35	SN	X935M-40	33000-0004	MAT-120-240
