Connector End View - X944M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

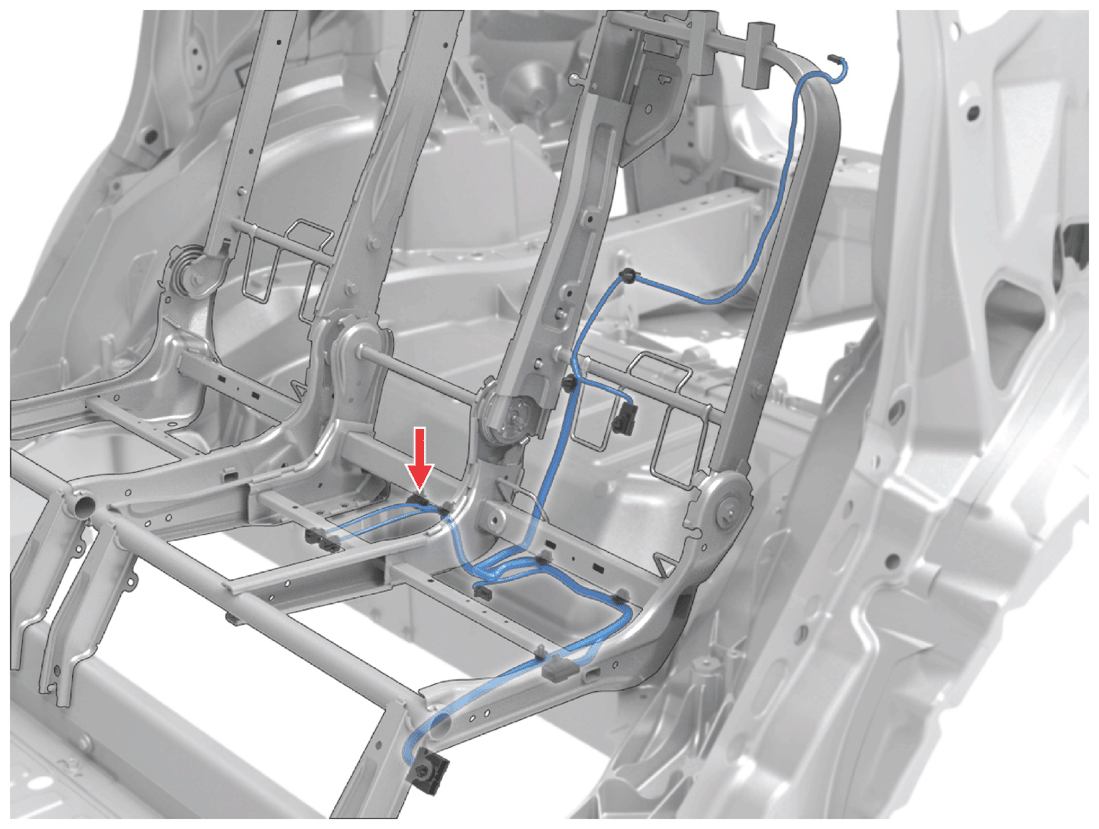

Fig 1: Connector Component Location - X944M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-5668
Color: WH

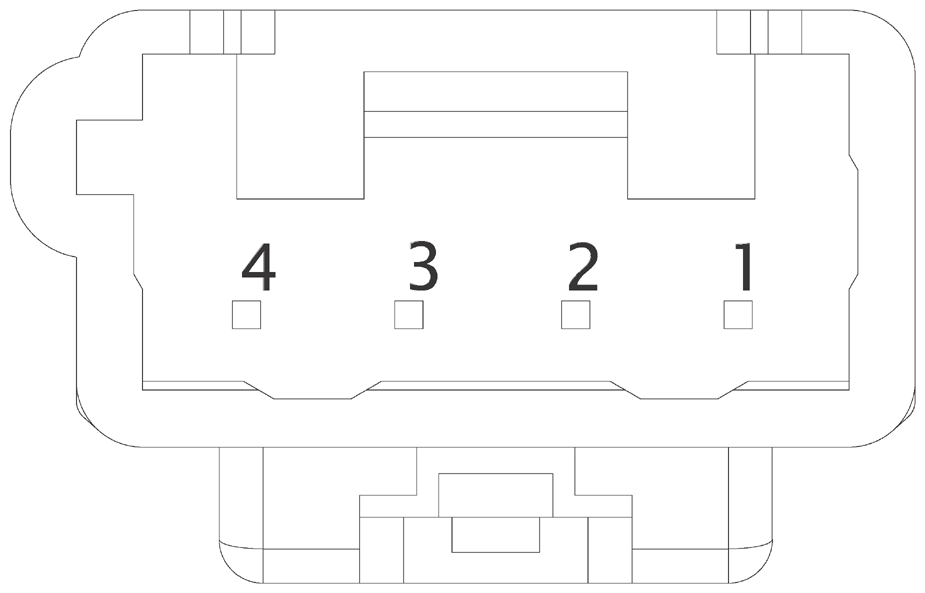

Fig 2: Connector End View - X944M [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | VT | 0.50 | SN | X943M-8 | 8230-4925 |
| 2 | RD | 0.50 | SN | X943M-9 | 8230-4925 |
| 3 | BU | 0.35 | SN | X943M-10 | 8230-4925 |
| 4 | GY | 0.35 | SN | 8230-4925 |
