Connector End View - X896 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

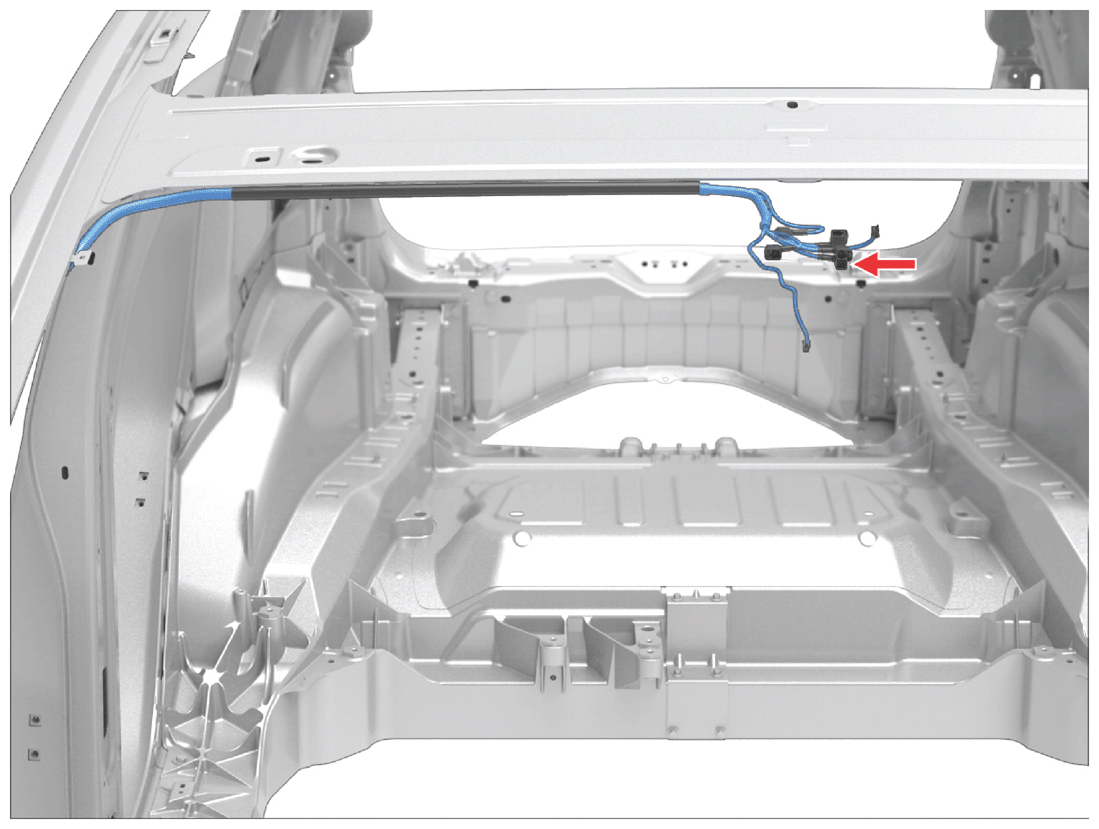

Fig 1: Connector Component Location - X896 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: ROSENBERGER 59Z127-000-A
Color: BK

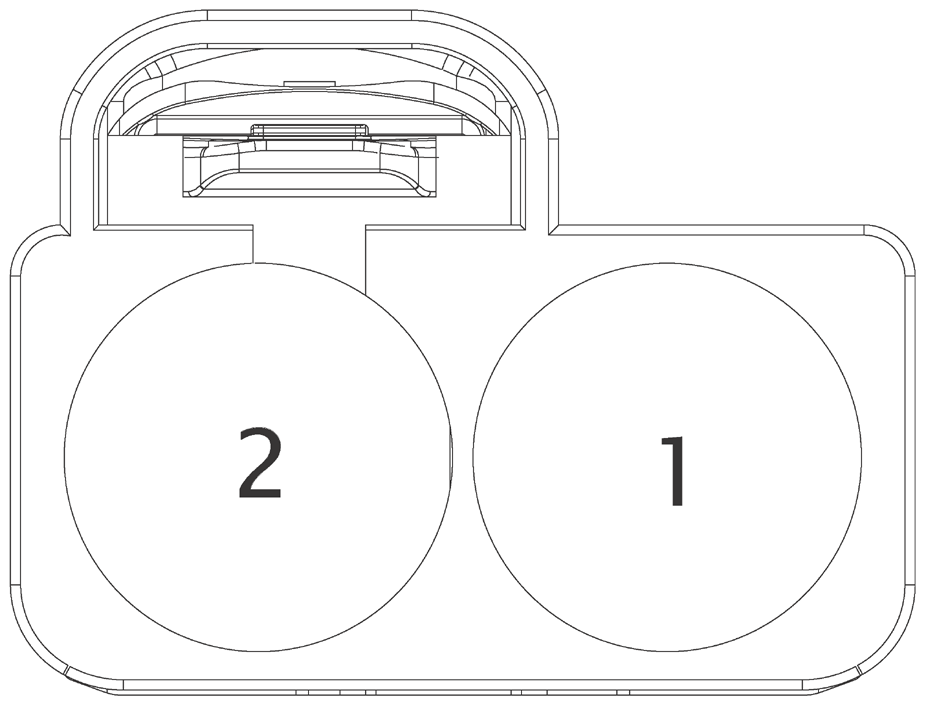

Fig 2: Connector End View - X896 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | D462 | AU | X886M-1 | 59K26A-102Z4 |
| 2 | BK | D462 | AU | X886M-2 | 59K26A-102Z4 |
