Connector End View - X406 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

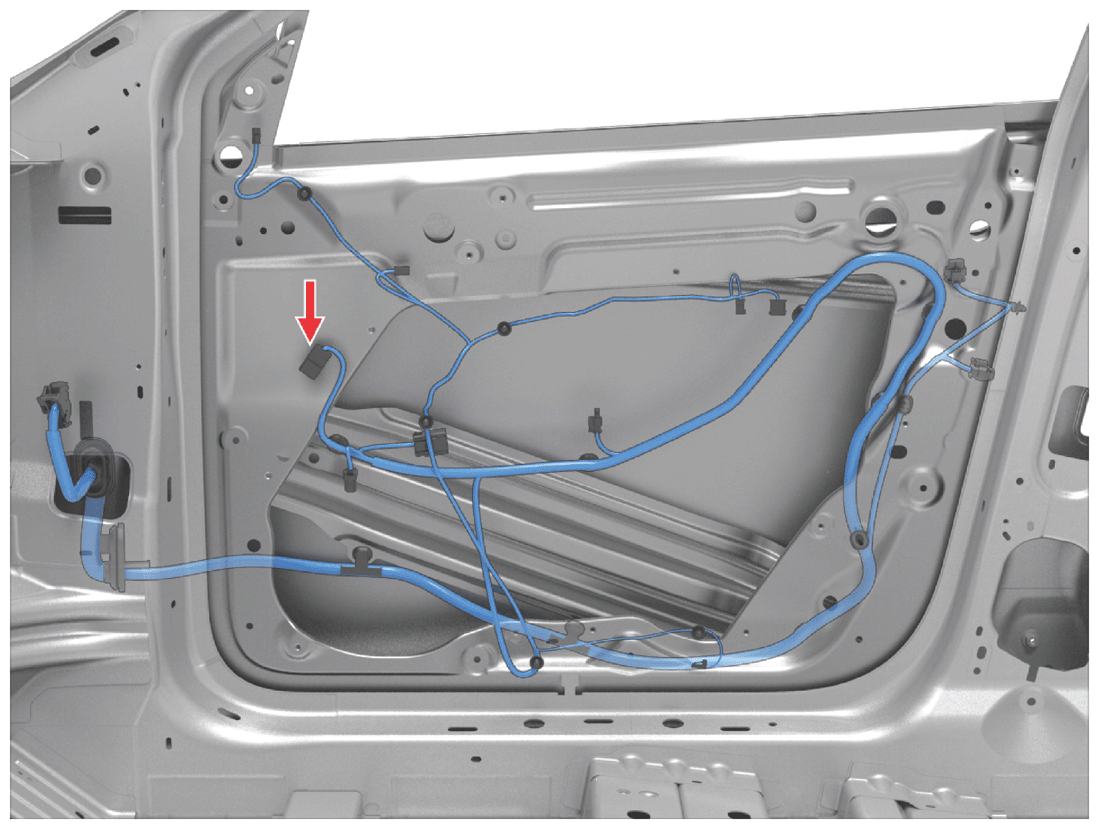

Fig 1: Connector Component Location - X406 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-3879
Color: BU

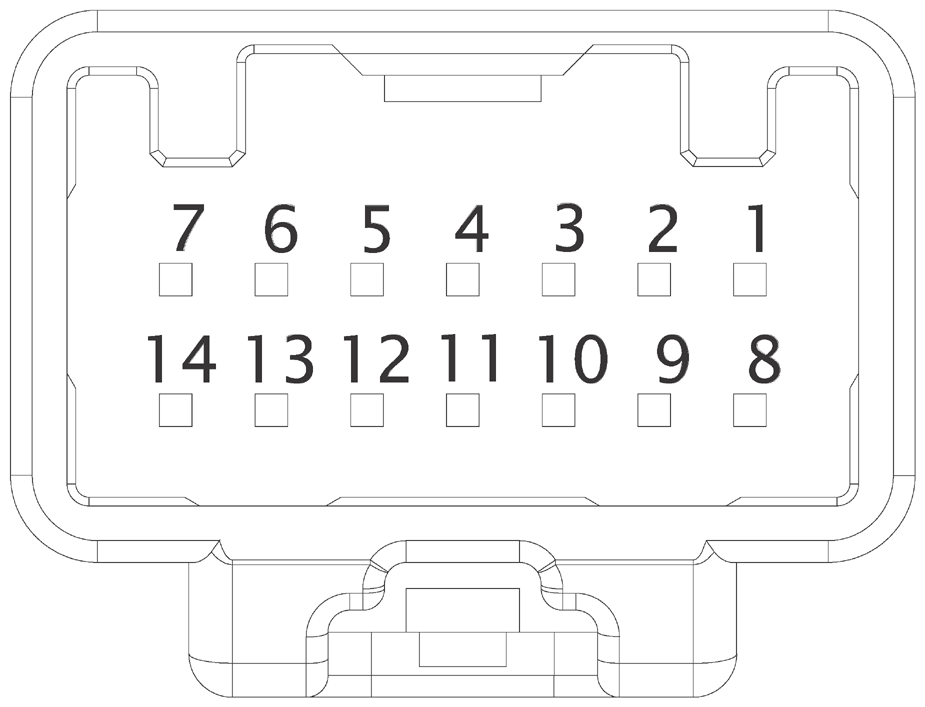

Fig 2: Connector End View - X406 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | RD | 0.35 | SN | X053A-2 | 8100-3623 |
| 2 | YE | 0.13 | SN | X053A-17 | 8230-4878 |
| 3 | WH | 0.13 | SN | X053A-16 | 8230-4878 |
| 4 | VT | 0.13 | SN | X053A-20 | 8230-4878 |
| 5 | BU | 0.13 | SN | X053B-1 | 8230-4878 |
| 6 | BK | 0.35 | SN | 8100-3623 | |
| 7 | BK | 0.35 | SN | 8100-3623 | |
| 8 | BU | 0.13 | SN | X053A-14 | 8230-4878 |
| 9 | VT | 0.13 | SN | X053A-15 | 8230-4878 |
| 10 | BN | 0.13 | SN | X053A-1 | 8230-4878 |
| 11 | |||||
| 12 | GY | 0.13 | SN | X053B-2 | 8230-4878 |
| 13 | BK | 0.35 | SN | 8100-3623 | |
| 14 | BN | 0.13 | SN | X053A-3 | 8230-4878 |
